Mars 4 Ultra 9K

• 7-inch 9K mono LCD display
• Resolution 8520×4320
• Up to 150 mm/h
• High speed Wifi transfer
• Powerful Linux operating system
• 4-point levelling system
• Build volume 153,36×77,76×165 mm³

Key Features:

• 【7-inch 9K mono LCD】Equipped with a 7-inch 9K mono LCD display with an impressive 8520×4320 resolution and 18µm XY resolution, Mars 4 Ultra allows you to print incredibly intricate patterns with crisp detail. The monocrystalline display is protected by 9H hardness tempered glass, ensuring it withstands daily wear and tear while maintaining optimal performance.
• 【Powerful Linux Operating System】With built-in 4G RAM and no more file loading lag, Linux operating system provides faster and smoother operation and efficient resource management.
• 【Wi-Fi Connection】Seamless file transfer via the built-in WiFi connection, supporting both 2.4G and 5G networks with transfer speed of 6-10Mbps, eliminating the need for cumbersome cables.

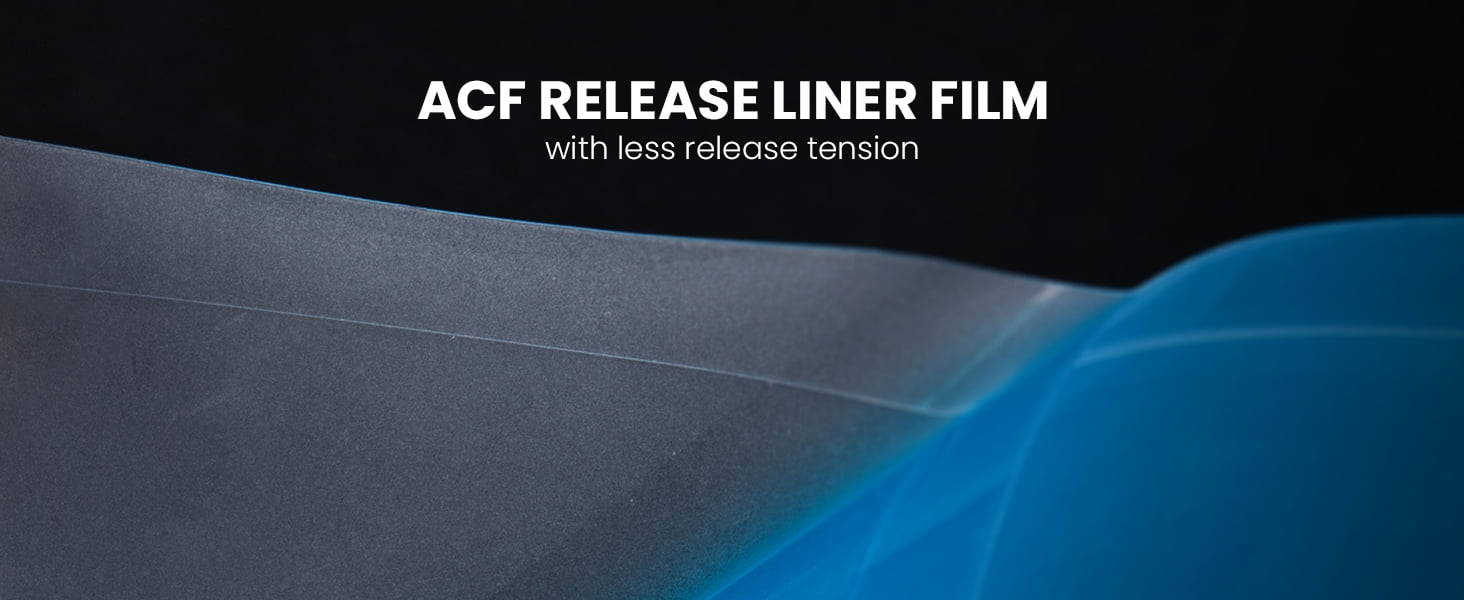

• 【Seamless Leveling】The four-point seamless leveling system makes setup easy, and there is no need to repeat leveling after one leveling, ensuring perfect prints every time. The laser-cut build plate surface offers improved adhesion, reducing the risk of printing errors. Brand new ACF release liner film with less release tension for high print success rates even at higher print speeds.
• 【User-friendly touch screen】Navigate easily with the 4-inch HD IPS touch screen with 800*480 pixels resolution and 12 languages support, making it easy for users of all skill levels.
• 【Purified Printing Environment】Included air purifier with improved activated carbon filter to effectively filter resin odor during printing. This feature improves the overall printing experience and provides a healthier environment for you.

ELEGOO MARS 4 Ultra 9K MSLA 3D Printer

9K accuracy with stunning detail

ELEGOO Mars 4 Ultra offers exceptional print quality and detail. It features a 7-inch 9K monocrystal LCD display with 8520*4320 resolution that captures every tiny detail, allowing you to produce extremely detailed models with incredible 18 micron XY accuracy.
The fast printing capabilities of the Mars 4 Ultra are equally impressive, allowing you to achieve print speeds of up to 150 mm/hr with ACF film with a release liner and the upcoming ELEGOO FAST standard resin. This 3x faster print speed allows you to produce high-quality models with incredible speed and efficiency.

High-speed transfer via Wi-Fi

The brand new Linux operating system with built-in 4G RAM supports Wi-Fi transfer at 6-10Mbps. It is also compatible with 2,4G and 5G networks, making transferring files from your computer or mobile device easy. The removable Wifi antenna is conveniently located on the side of the printer’s Z-axis, making it easy to connect to your network.

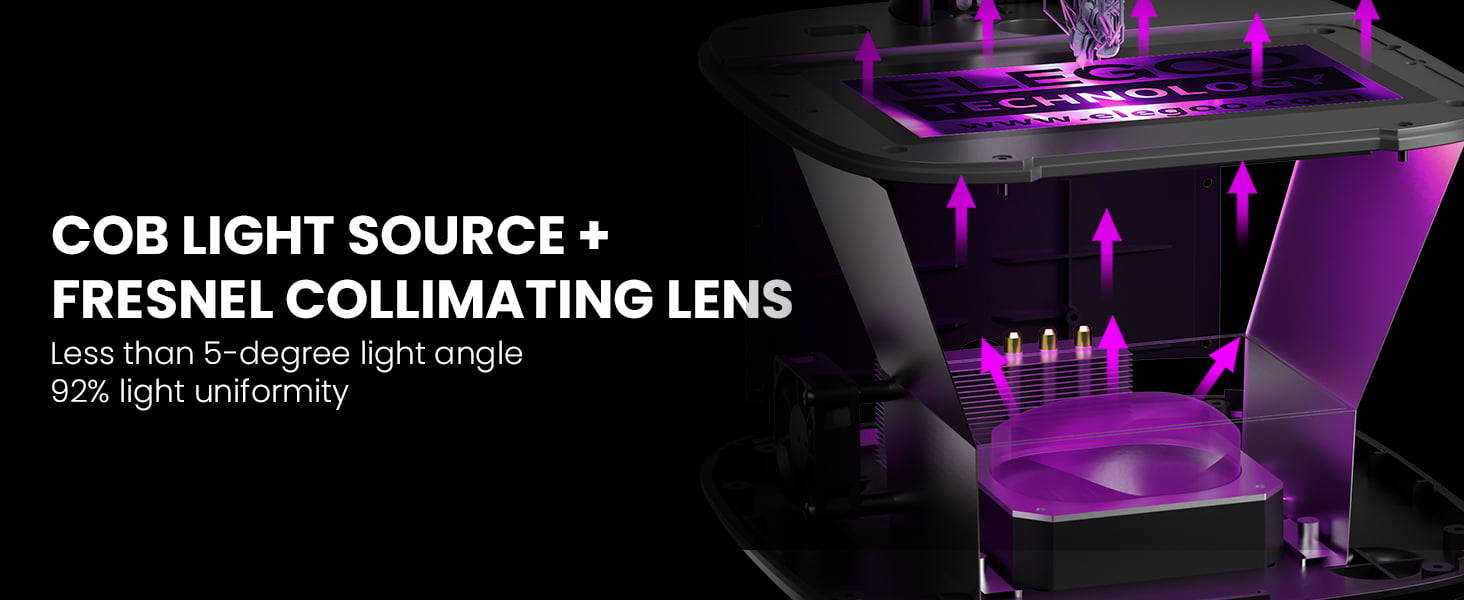

COB light source + Fresnel collimation lens

Enjoy vertical and uniform exposure to a 405 nm wavelength beam thanks to the COB light source and Fresnel collimating lens, which provide consistent curing throughout the build area with less than 5 degrees of light angle and 92% light uniformity. This ensures that your models have a smooth and even surface.

Stable print performance

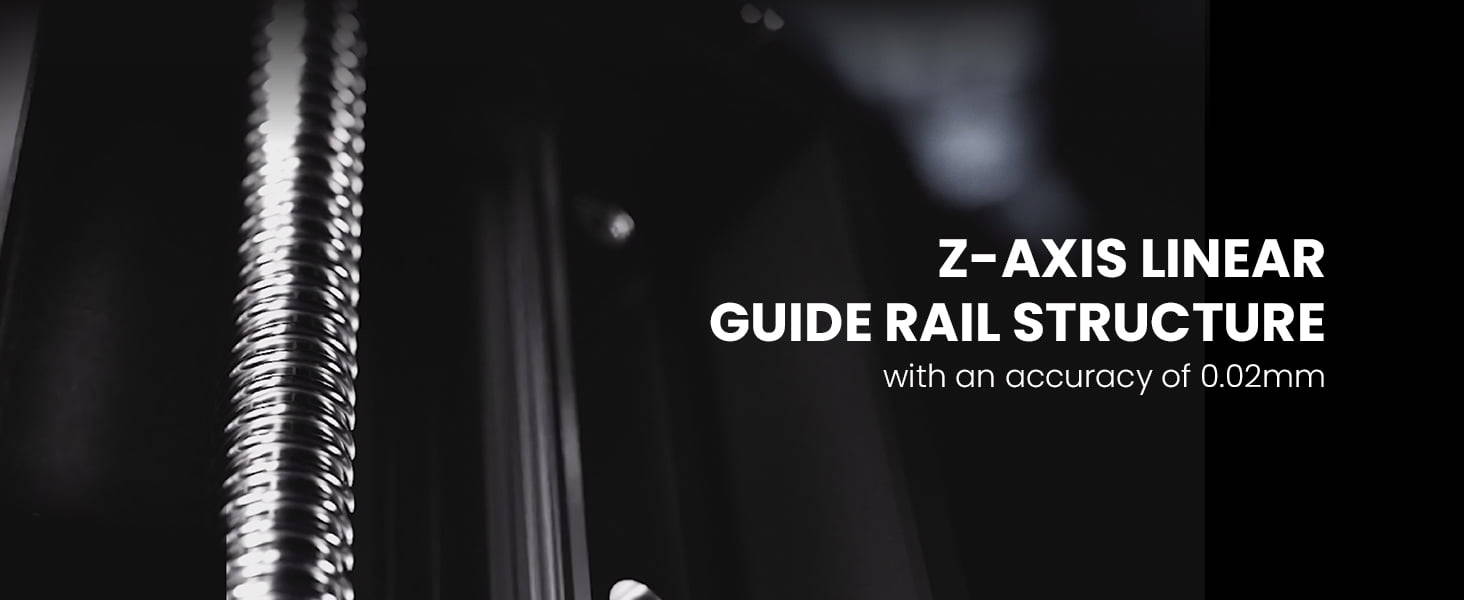

The Z-axis uses a linear guide rail structure with an accuracy of 0.02mm, which provides precise and stable movement to eliminate cracks on the final impressions and produce smooth and delicate surfaces on your models. The four-point clockwise leveling system with four tightening screws is designed to eliminate the need to re-level after a single leveling, saving you time and effort. The build plate has a laser-cut surface to improve adhesion during the printing process, even when printing large patterns.

Improved printing experience

Next to the COB light source are a large cooling fan and thermally conductive copper tubes for fast heat dissipation. This feature not only improves the printer’s performance, but also extends its service life. The improved air cleaner has a protective plastic case that protects the built-in activated carbon filter during transport and effectively removes resin odor during printing. The printer ships with a Voxeldance Tango Slicer, which offers both static and dynamic modes (including smooth and high-speed modes) to improve printing efficiency. The GOO open slicer file format is compatible with third-party slicer software such as CHITUBOX and Lychee Slicer.

Thoughtful details

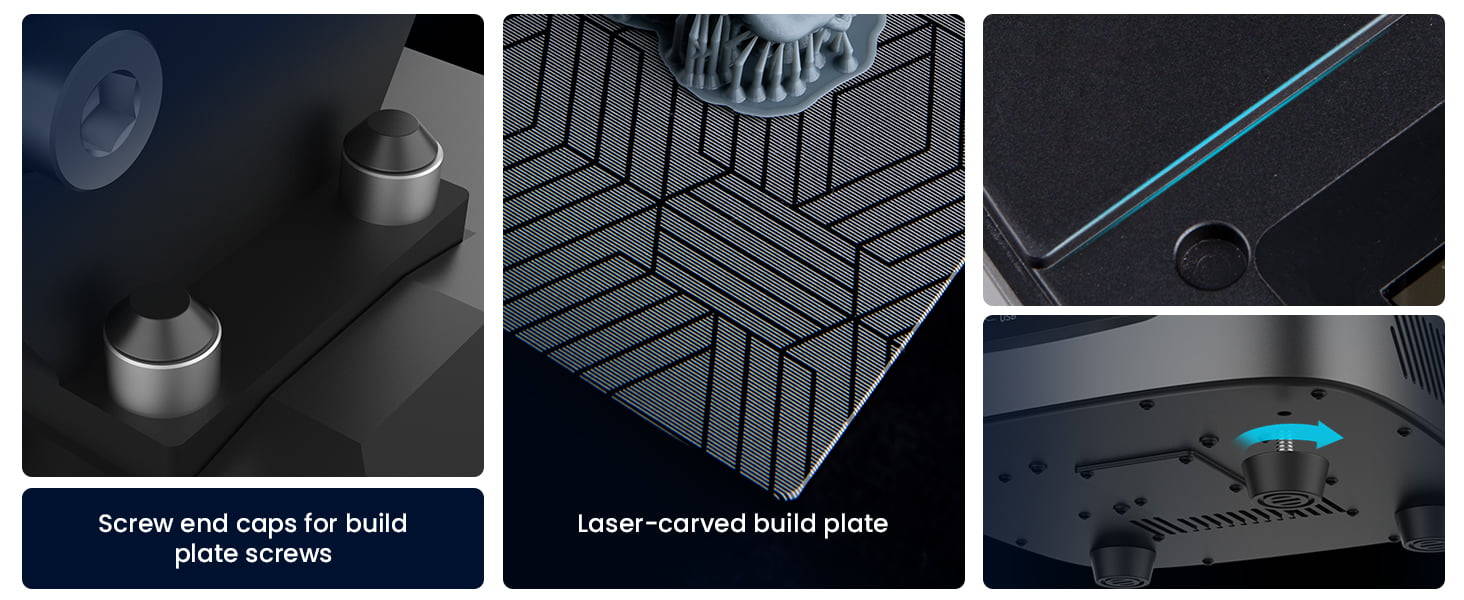

The Mars 4 Ultra comes with an all-metal machine body to improve the stability and durability of the printer, making it capable of withstanding the rigors of frequent use. The sleek and modern design of the printer also adds aesthetic appeal to your workplace. The middle plate of the printer is designed with a raised step to prevent resin leakage inside the printer, which protects the printer’s internal components from damage and provides a clean workspace. The screws on the build platform have screw caps for easier cleaning, saving time and effort during post-processing and maintenance. Adjustable foot pads for improved stability ensure the printer remains stable on uneven surfaces.

Technical specifications

• Product model: MARS 4 Ultra 9K
• LCD DISPLAY: 7-inch 9K mono LCD display
• System: EL3D-4.0
• Slicing software: ChituBox
• Technology: MSLA 3D stereolithography
• Layer thickness: 0,01-0,2 mm
• Printing speed: 30-70mm/h
• Z-axis accuracy: 0.02 mm
• XY resolution: 0.018 mm (8520*4320)
• Construction volume: 153.36 mm (length) * 77.76 mm (width) * 165 mm (height)
• Light source: UV integrated light (405nm wavelength)
• Languages Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish
• Portuguese
• Connectivity:USB
• Weight: 7kg
• Operation: 3.5-inch touch screen
• Power requirements: 100-240V 50/60Hz 24V 3A
• Printer dimensions: 22.7cm(L)*22.7cm(W)*44.35cm(H)
