Description:
- [360° експозиция] The post curing station uses 2 L-shaped light bars (each embedded in 14 UV LED lights) and adds 4 UV LED beads under the rotating countertop. It works with a 360°automatic rotating platen and a handheld UV lamp that cures the nooks and crannies of the 3D prints so that the entire model is cured thoroughly, without dead spots.

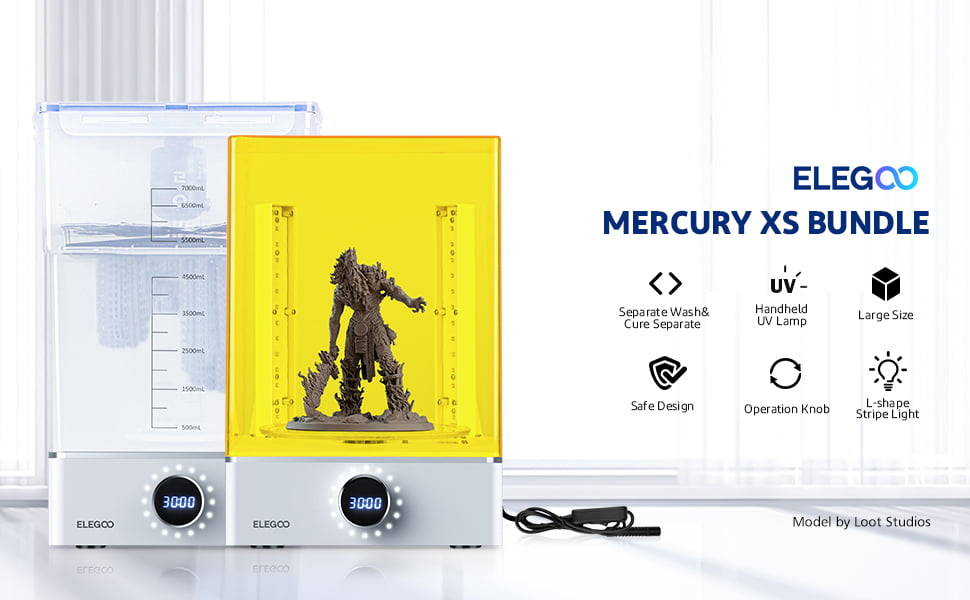

- [Dual wash and cure function] ELEGOO Mercury XS contains 1 wash station and 1 cure station, with dual wash and cure function to remove uncured resin on 3D printed models and optimize print quality, making your post-processing easy and efficient.
- [Large wash volume] With a pressurized water tank with a large capacity of 7000 ml, you can directly wash large models printed by ELEGOO Saturn and Mars 3, or clean parts in batches, offering significant time savings and improving your productivity.
- [Easy and intuitive operation] With one knob, simply press and hold to turn on the machine, then turn the knob to set the appropriate wash or cure time, and your patterns will be ready in a short time. The UV coating can block 99.9% of UV rays and protect your vision during post curing.
- [Wide compatibility] Directly compatible with ELEGOO Saturn or Mars 3 3D printers and the closest build volume LCD/DLP/SLA resin 3D printers on the market, making post-processing your resin 3D printing simple, professional and efficient.
Friendly advice:
The Mercury XS is perfectly matched with the Mars 3 Pro 3D Printer and the Saturn 2 3D Printer, but before you wash the prints on the Saturn 2, you need to remove the build plate handle.

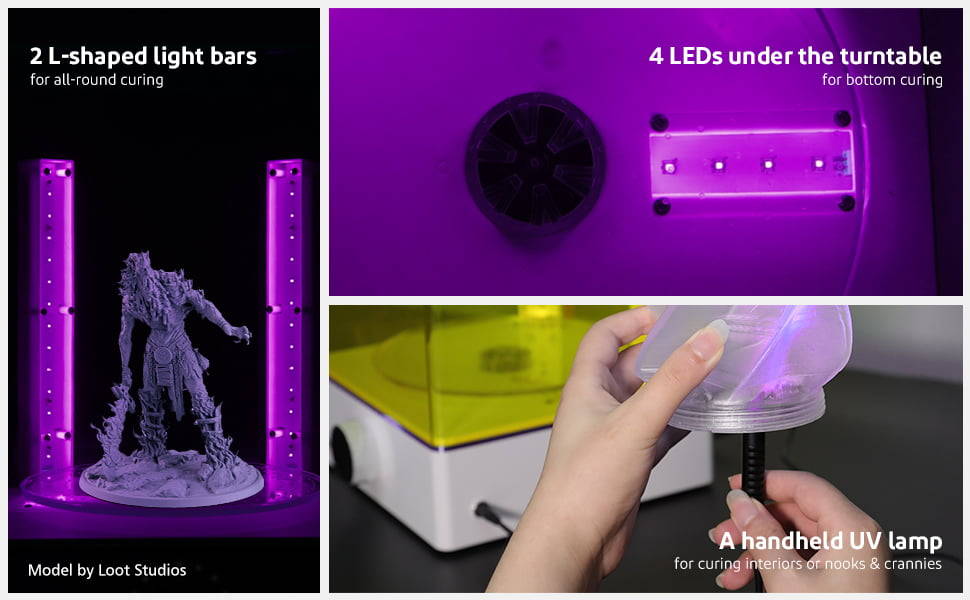

A truly comprehensive treatment
The 2 adjustable L-shaped light bars and magnified 4 LED lights under the 360° rotating turntable, combined with a Fresnel lens, emit UV light with a uniform wavelength of 405 nm, ensuring the model is evenly exposed from all angles.
It also has a handheld UV lamp to cure the inside or corners of 3D printed parts for a smoother surface and incredible print quality, also ideal for curing assembled models.

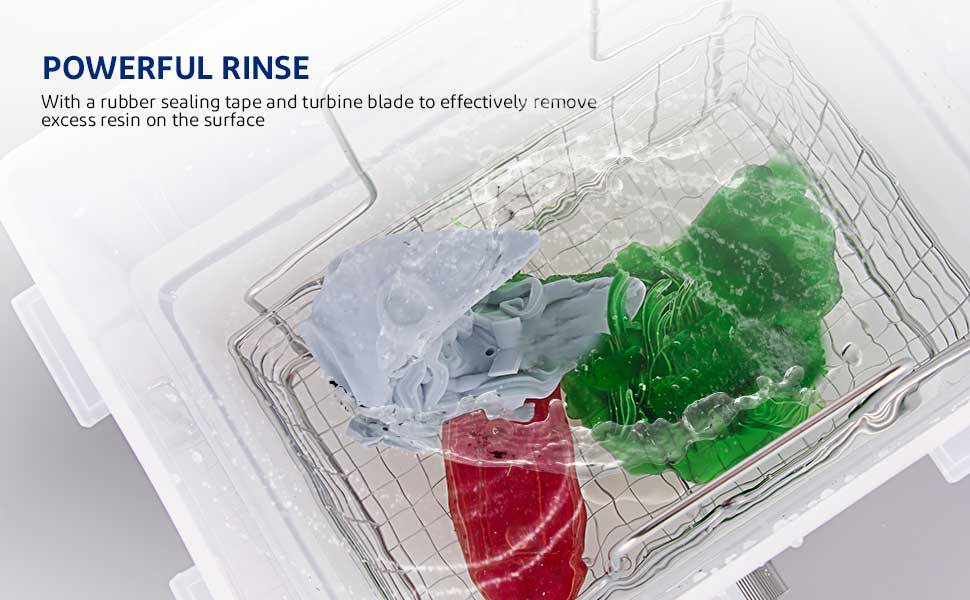

Powerful rinsing
The 7.5 litre water container is designed with a rubber sealing strip and a powerful turbine blade to effectively remove excess resin on the models surface and prevent splashing and evaporation of the liquid. 2 methods of cleaning: washing in a basket, remove the model and put it in the cleaning basket; washing with hanging, directly hang the printing platform on the cleaning stand for cleaning.

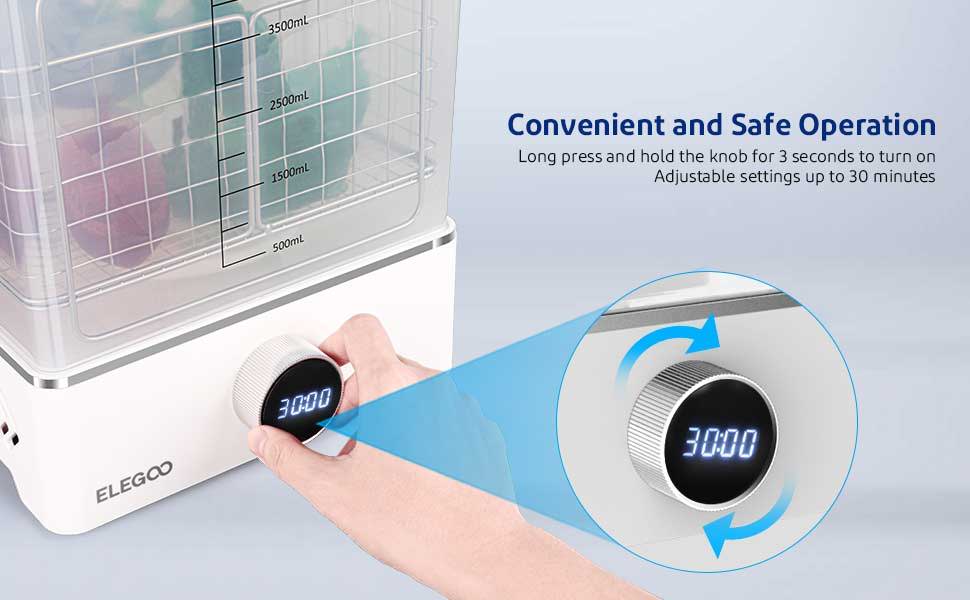

Convenient settings for operation
Simply press and hold the knob for 3 seconds to switch on, with a handy interface to easily control the wash and cure functions. The setup time can be adjusted for a maximum of 30 minutes depending on your needs.

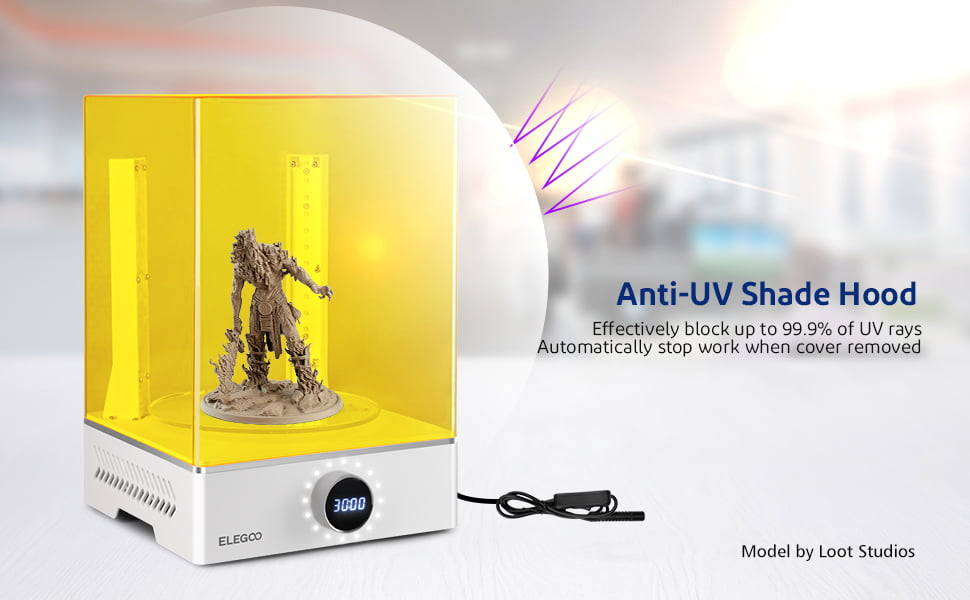

UV protection coating
The transparent cover of the curing machine can block up to 99.9% of UV rays to improve the curing speed of the resin and protect your vision during the curing process. The safety option automatically switches off the UV lights when you remove the cover.

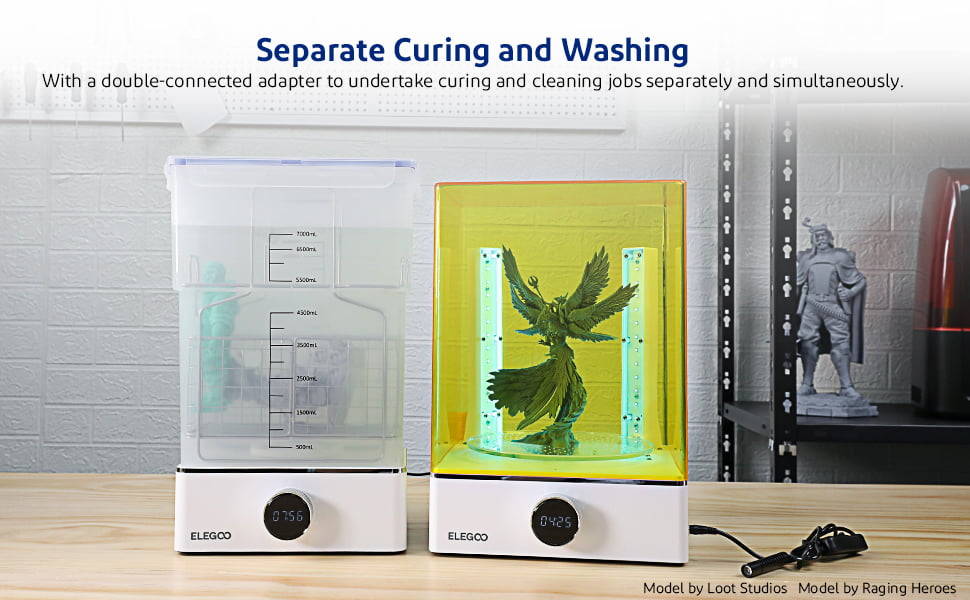

Separate curing and washing
The dual-connection adapter saves you time by allowing you to perform both curing and washing – one for washing and one for curing. Once the washing and curing is complete, the smooth and clean parts are ready where you are.
Operating Instructions:
- After the pattern is printed, please clean and dry the pattern before putting it into the machine.
- If the pattern turns yellow after curing, please reduce the curing time. Excessive curing will cause the pattern to yellow.
- The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20-50%.
- Please do not use it for more than 40 minutes at a time to avoid overheating
- Cure Time: If the model diameter is less than 30 mm, a cure time of 2 minutes is recommended. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
- Special Note: The wash function is not quite suitable for 3D models printed with resin that can be washed with water, which are better washed with running water.
Technical specifications
ELEGOO Mercury XS WASH Machine
- Control method: knob + button
- Rated power: 12W
- Input voltage: 110V/240V 50/60Hz
- Time setting: 0-30 min.
- Machine size: 255mm*155mm*385.5mm
- Maximum wash volume:
- (with platform)180mm*121mm*153mm
- (without platform)201mm*124mm*255mm
- Net machine weight: 2,27 kg
- Control method: knob + button
- Rated power: 36W
- Input voltage: 110V/240V 50/60Hz
- Time setting: 0-30 min.
- Machine size: 246mm*230mm*363.5mm
- Maximum curing size: 200mm*260mm
- Net machine weight: 2,4 kg
