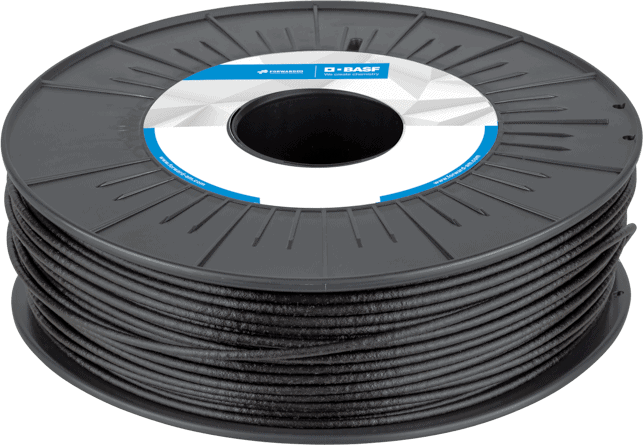

Ultrafuse PC GF30

Ultrafuse PC GF30 contains 30% special glass fibers designed for filament fabrication
and 3D printing. Due to its high heat deflection temperature and excellent
dimensional stability, Ultrafuse PC GF30 is a suitable material for industrial applications
where high temperature resistance and high strength are required.

Applications – interior and exterior

The V0 fire rating makes the PC GF30 an ideal choice for applications
in the transportation industry. Its resistance to UV light and low moisture
absorption allow use for both indoor and outdoor applications.

Tips and tricks

• Nozzle temperature: 280-330 °C
• Bed temperature: 80-100 °C
• Adhesion to the bed: PC adhesive
• Filament drying: 100 °C for at least 5 hours
• Nozzle diameter: ≥ 0.6 mm
• Print speed: 30-60 mm/s

Material properties

• Tensile strength (MPa): 36.1 (XY), 11.2 (ZX)
• Elongation at break (%): 2.4 (XY), 1.1 (ZX)
• Bending modulus (MPa): 2690 (XY), 3450 (XZ), 934 (ZX)
• Impact strength Charpy, without slot (kJ/m²): 17.1 (XY), 18.9 (XZ), 3.7 (ZX)
• Impact strength Izod, without slot (kJ/m²): 13.9 (XY), 17.8 (XZ), 3.4 (ZX)
• HDT @ 0.45 MPa: 134 °C

BASF – Quality Control

Only the highest quality raw materials from proven manufacturers are selected.
Production with modern computer-controlled technology ensures
extremely consistent filament parameters between different colours and batches.
The material behaves predictably and reliably in every use.

All BASF products are 100% traceable to source.
