PP Filament – Natural – Spectrum

PP Filament – Natural – Spectrum

PP – Natural Spectrum is a new material based on a random unfilled polypropylene copolymer. It has good mechanical properties combined with outstanding chemical resistance and low density. This material does not require a heated chamber to be printed and shows improved bonding of the layers, thus reducing the anisotropy of the final part.For the pure material, a build plate of PP is recommended. The specific quality of PP-Natural is the low moisture absorption, up to 0.3%.

In addition, PP-Natural features high flexibility (ultimate elongation – 500 %) and high impact resistance plus reduced moment of inertia compared to metal parts. PP-Natural also has good chemical, temperature and electrical resistance.

PP-Natural enables to obtain relatively high resistance to thermal ageing, good tribological properties, including in dry friction conditions, such as in plain bearings. The very good mechanical properties of PP-Natural enable a wide range of diverse applications.

In order to achieve the very attractive properties of PP-Natural, as far as technical aspects are concerned, you must follow the basic rules for storing such materials (in a dry and dark place with humidity below 15%). To obtain the best possible parameters of the printed object, it is recommended to dry the material before handling.

Tip: It is recommended to print using a heated chamber. Use Magigoo PP for better adhesion.

Key Features:

• low technological (linear) shrinkage up to 0.3%
• high impact resistance
• easy separation of the object from the bed
• high mechanical strength
• chemical resistance of lubricants and oils
• wide range of applications
• very strong lamination of the layers
• Vicat softening temperature – 135°C
• HDT B – 80°C

Applications:

• end-use parts
• live hinges
• functional prototyping
• industrial modelling
• laboratory equipment and moulds
• packaging
• storage boxes and protective covers

Packaging

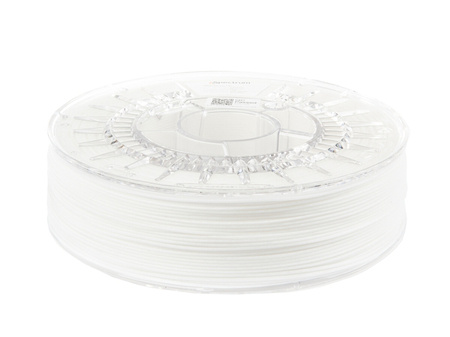

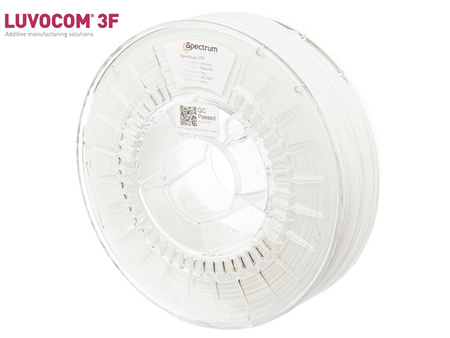

The threads are wound on a clear, transparent spool. Each spool contains information about the material type, diameter and recommended printing temperature. The filament is vacuum packed with a moisture absorber. All product is packaged in Spectrum Filaments’ original, folded packaging.

Recommended print settings

• Printing temperature: 220-240°C
• Heated bed: necessary
• Heated bed temperature: 80°C
• Print speed: 30-80 mm/s
• Closed chamber: recommended

Dimensions of the roll

• Outer diameter: 200 mm
• Width: 55 mm
• Inner diameter: 52 mm
• Empty reel weight: ± 220g
