D600 Pro 2 – CreatBot
Discover the leading professional large format 3D printer
The D600 Pro Series has proven to be the most popular professional large format 3D printer in the world. It has gone through a 6-year build-up and market testing. Since its launch, we have continuously upgraded and improved it based on user needs and feedback. So far we have made approximately 30 improvements to product details, incorporating new technologies and fixing issues. We turn it into a very robust professional 3D printer with large dimensions, deeply preferred by small and medium-sized enterprises.
The D600 Pro 2 is a brand new product based on the D600 Pro, which is now being launched with more advanced design concepts and deep technical reservations. It is professionally designed, has powerful performance and does not feature any flaws. Higher print volume, faster speed, stronger material compatibility, simpler operating procedures and more robust 7/24 operation. It will undoubtedly capture the needs of all professional 3D printer users within the 600mm*3 size worldwide. Within the $15,000 price range, it will become your first choice without looking at other products.
D600 Pro 2 CREATBOT
- 600*600*600 mm
- 420°C+100°C+70°C
- High resolution and speed
- Removable magnetic platform
- Reliable 24/7
- Fully enclosed
Automatic rising two extruders 420℃
The D600 Pro 2 is equipped with a new intelligent set with two extruders automatically rising with a hotend temperature up to 420℃. It is capable of printing engineering materials such as PLA, ABS, PC, UltraPA, carbon fiber, glass fiber, etc. with quick-removing auxiliary materials.
Magnetic platform
Exclusive R&D on large size magnetic platform, easily demagnetizable platform, high temperature resistance exceeding 100 °C, continuous use without demagnetization.
For the large size models, it is easy to detach them quickly, and the bottom of the model is flat. Convenient for all operators.
Powerful core
The 32-bit motherboard, equipped with a powerful NPU core, can quickly respond to any programming instructions without delay.

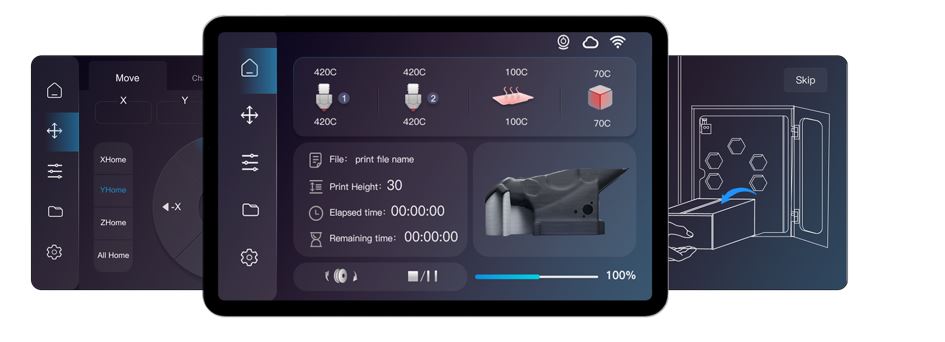

7-inch touch display
New UI design, better user interaction and more convenient operation.
Z magic box: texture elimination
In high Z-distance 3D printing devices, the Z-axis texture deteriorates as the model height increases. Our Z-axis magic box technology can significantly reduce or even eliminate the Z-surface texture of high end models, ensuring that the surface quality of the model remains smooth and consistent.

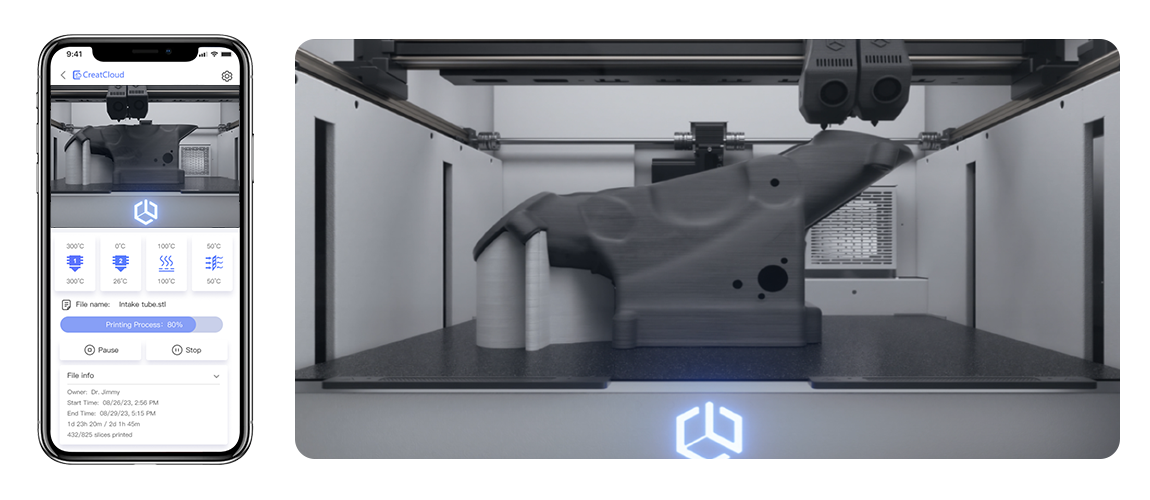

Camera control technology
Camera control technology allows customers to control the printing process of speed, pause, temperature, etc. using APP remotely, which can lead to the best printing quality with the shortest time without failure. Very useful feature for large pattern and long lasting print.
Technical characteristics
Technical characteristics
- Printing technology Fused deposition modelling
- Volume of the structure in single extrusion: 600*600*600 mm
- Double extrusion: 540*600*600 mmNumber of nozzles Double
- Automatically rising extruders Yes
- Minimum layer height 0,05 mm
- Thread diameter 1,75 mm
- Filament Compatibility: PLA, ABS, Carbon, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, TPU, ASA, PETG, etc.
- Nozzle diameter 0.6 mm (0.3, 0.4, 0.6, 0.8, 1.0 mm)
- Print file type GCODE
Temperature
- Max. Nozzle temperature 420°C
- Max. Bed temperature 100°C
- Max. Chamber temperature 70°C
- Drying temperature 0-70°C (by time)
Speed
- Best print speed 80mm/s
- Max. Print speed 150mm/s
Electric
- Power requirements 220~240 V, 50~60 Hz
- Max. Power 5500 W
- Screen 7″ touch screen
- Connectivity USB/USB drive/WiFi
Software
- Software package CreatWare, Simplify 3D, Cura,Slice 3r
- Supported file types STL, OBJ, AMF
- Operating systems Windows All; Mac OS
Special feature
- Restored interrupt Save data at power off
- Filament detection Stop printing when filaments jam or run out
- Automatic bed levelling Yes
- Auto Power Off Power off when printing is complete
- Magic Box Technology Perfect texture in Z direction
- Camera Control Monitoring + Control
- Emergency stop switch Yes
Hardware
- High precision X/Y servomotors
- High precision linear sliders on X/Y axes
- HEPA+carbon air filter
- Printing bed Movable magnetic platform (high precision aircraft aluminum plate base)
- Printing surface PEI sheet + PEI coating
- Motherboard 32 bits
- X/Y min&max Photoelectric switch
Size and weight
- Product dimensions and weight 1080*920*1245mm 200kg
- Package dimensions and weight 1150*1000*1410mm 245kg
