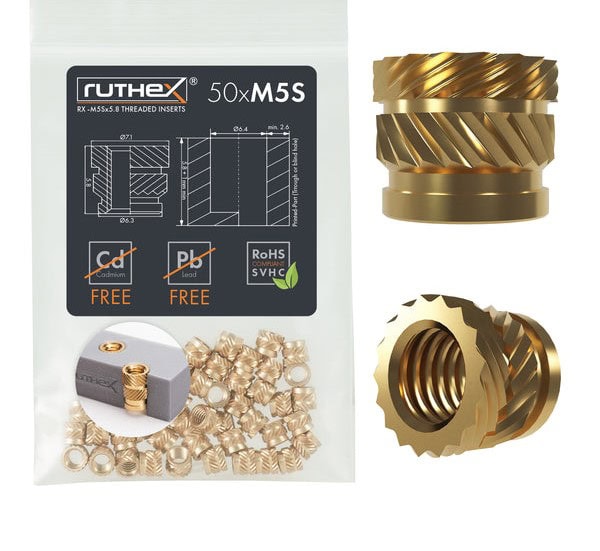

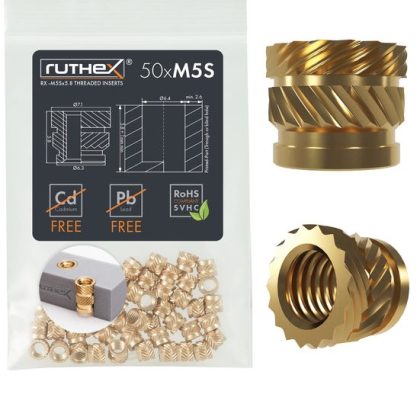

ruthex M5 brass threaded inserts for 3D-printed parts

The ruthex brass threaded inserts can be subsequently embedded into 3D-printed parts by printers such as Bambu Lab, Anycubic, Creality or Prusa.
By means of heat from a soldering iron or ultrasonic device, the inserts are easily pressed into blind or through holes, ensuring a strong and precise threaded connection.

⭐ Main advantages

• 🔩 Easy installation – embedding by heating or ultrasonic, no need for special tools.
• ⚙️ Strong retention – the double helical knurling provides maximum stability and resistance when tightened.
• 🧱 Premium brass – excellent thermal conductivity and corrosion resistance for long service life.
• 🔁 Reusable – the thread retains its strength when repeatedly screwed and unscrewed.
• 🧵 Compatible materials – PLA, PETG, ABS, ASA, PP, PPS and other thermoplastics.
• 🧰 Wide range of applications – suitable for housings, mechanical assemblies, mounting elements and functional 3D-printed parts.

📐 Specifications

• Thread size: M5
• Length: 5.8 mm
• Outer diameter: approximately 7.0 mm
• Material: brass (Brass CuZn40)
• Quantity: 50 pcs.
• Installation method: heat-set (soldering iron) / ultrasonic
• Model: RX-M5Sx5.8

📦 Packaging

Supplied in a sturdy plastic bag with ruthex label – approximate dimensions 8 × 5 × 1 cm, weight approx. 70 g.

Suitable for professional and amateur use in all types of 3D printers – Bambu Lab, Prusa, Creality, Anycubic, etc.
