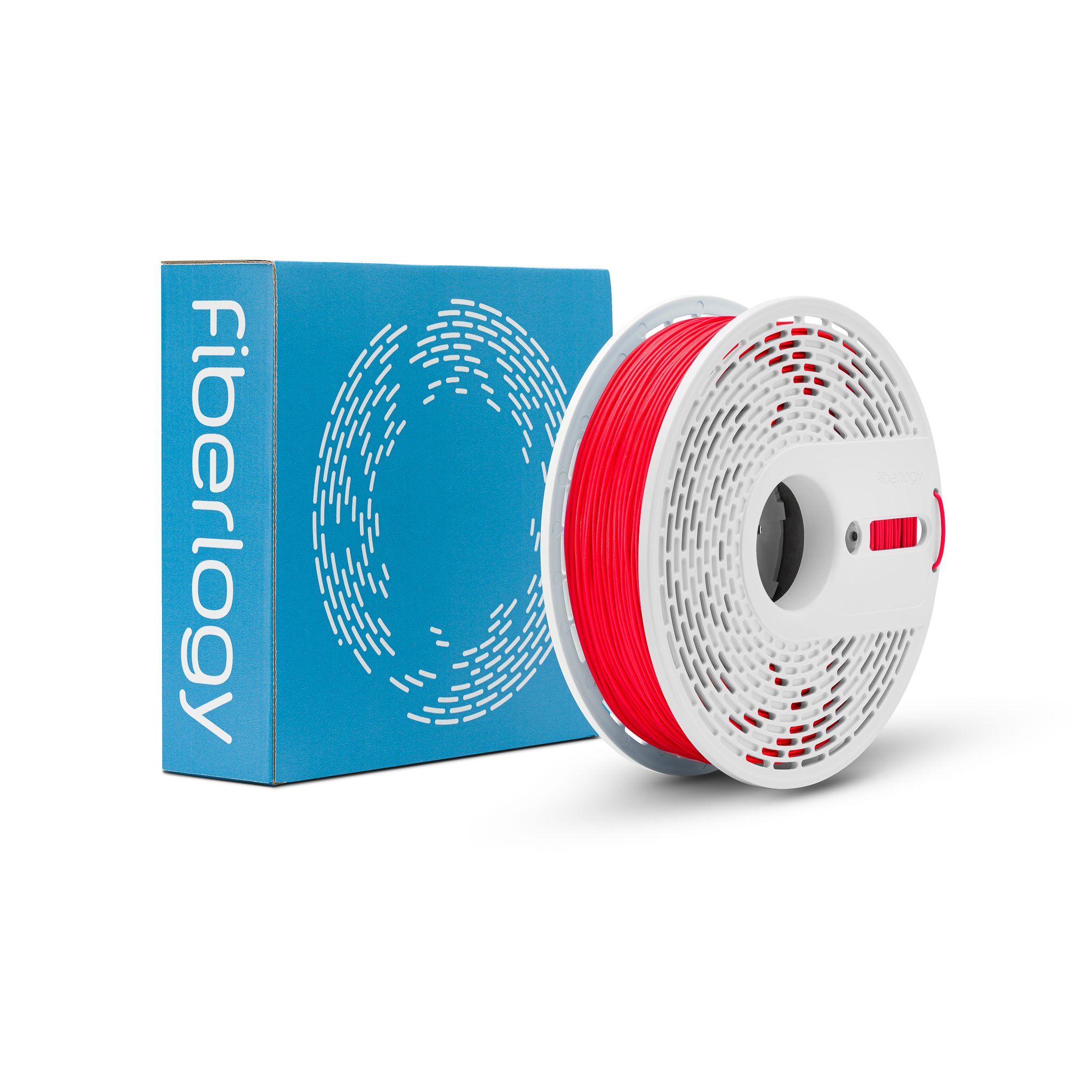

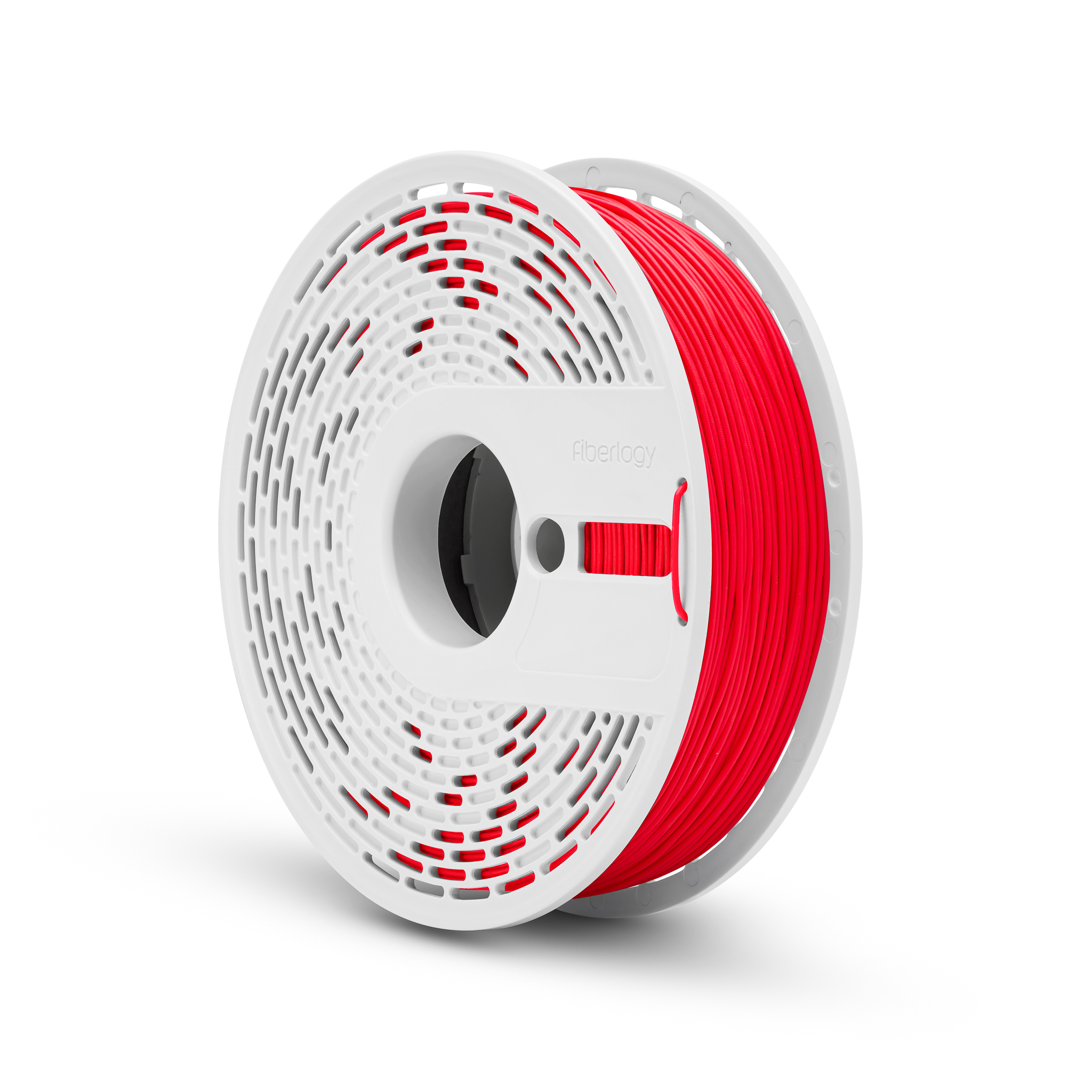

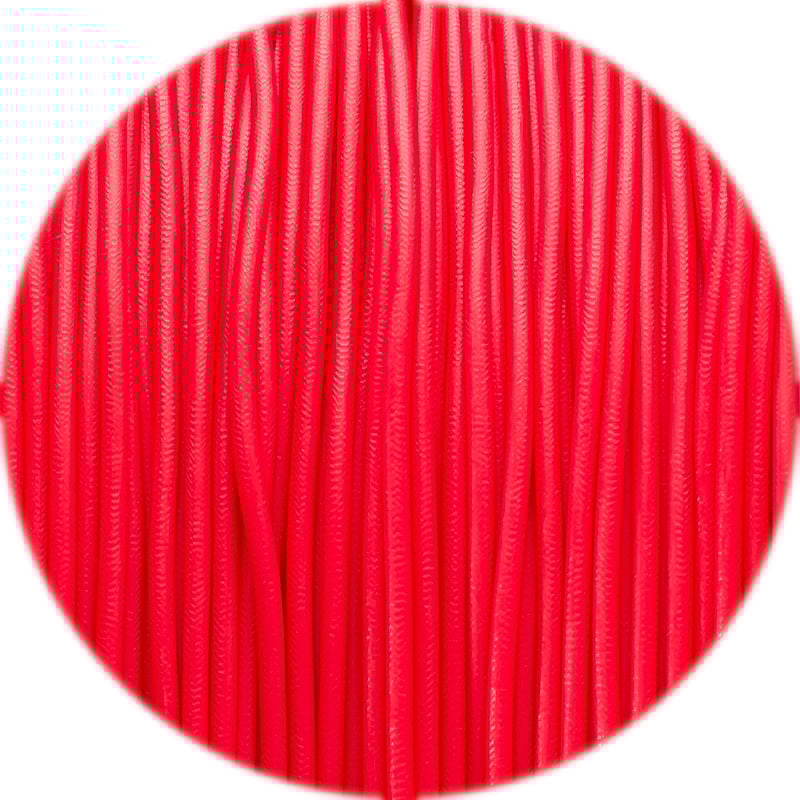

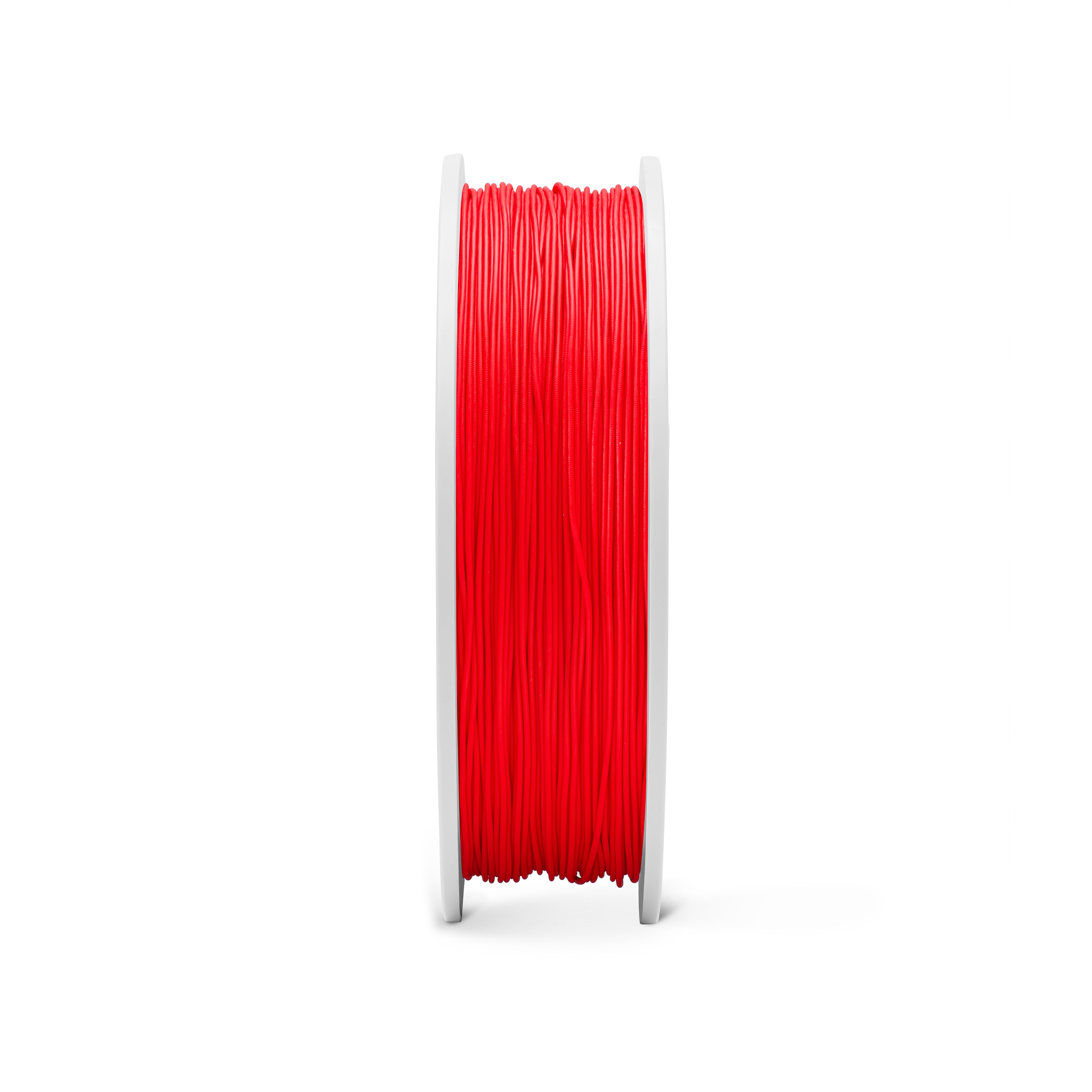

FiberFlex 30D – Red – Fiberlogy TPU

FiberFlex 30D – red Fiberlogy TPU

BE MORE FLEXIBLE.

Another option for the enthusiasts of printing on elastic materials. FIBERFLEX 30D is characterized by reduced hardness to 30D on the Shore scale, very good flexibility and higher impact strength.

The material is recommended for printing on tyres, seals, belts and any elastic elements.

APPLICATIONS:

RUBBER ELEMENTS: seals, elements that often bend
GIFT ITEMS OR ELEMENTS THEREOF: phone cases, watch straps, heart rate monitors, pedometers
RELATED ITEMS: flexible hinges
TOYS OR THEIR ELEMENTS: tyres, rubber figures
JEWELLERY: bands, bracelets

Properties:

30D Shore hardness
high impact resistance at low temperatures
very good thermal, chemical and abrasion resistance

How to print?
The following parameters are only suggested print settings for this material. To ensure the best print quality, it is necessary to select the appropriate settings for a specific printer and printing conditions.

FiberFlex 30D – red Fiberlogy TPU :

Nozzle temperature 200-220°C
Bed temperature 50-70°C
No closed chamber required
Fan 50-75%
Flow 105-110%
Print speed < 35 mm/s
Surface glass, masking tape
Retraction (direct) 1-2 mm
Retraction speed 10-30 mm/s
Notes For easier removal of the print, it is recommended to heat the bed to 110°C.
