All-metal Phaetus Dragonfly BMO Hotend

All-metal Phaetus Dragonfly BMO Hotend

Features

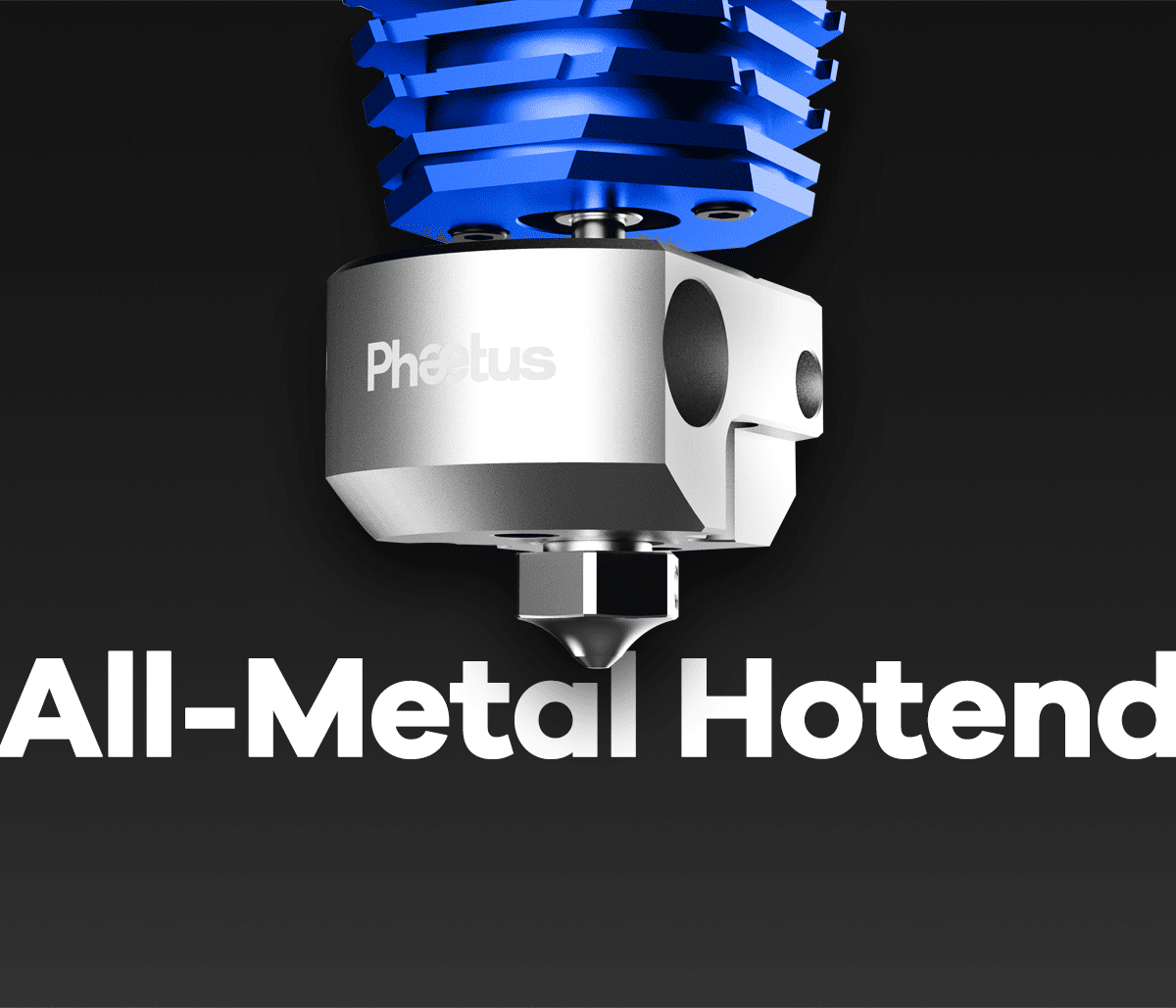

• All-metal kit, with total resistance to high temperatures up to 500℃.
• The hot end is mainly composed of copper alloy material, which has the advantage of faster heating and better heat dissipation.

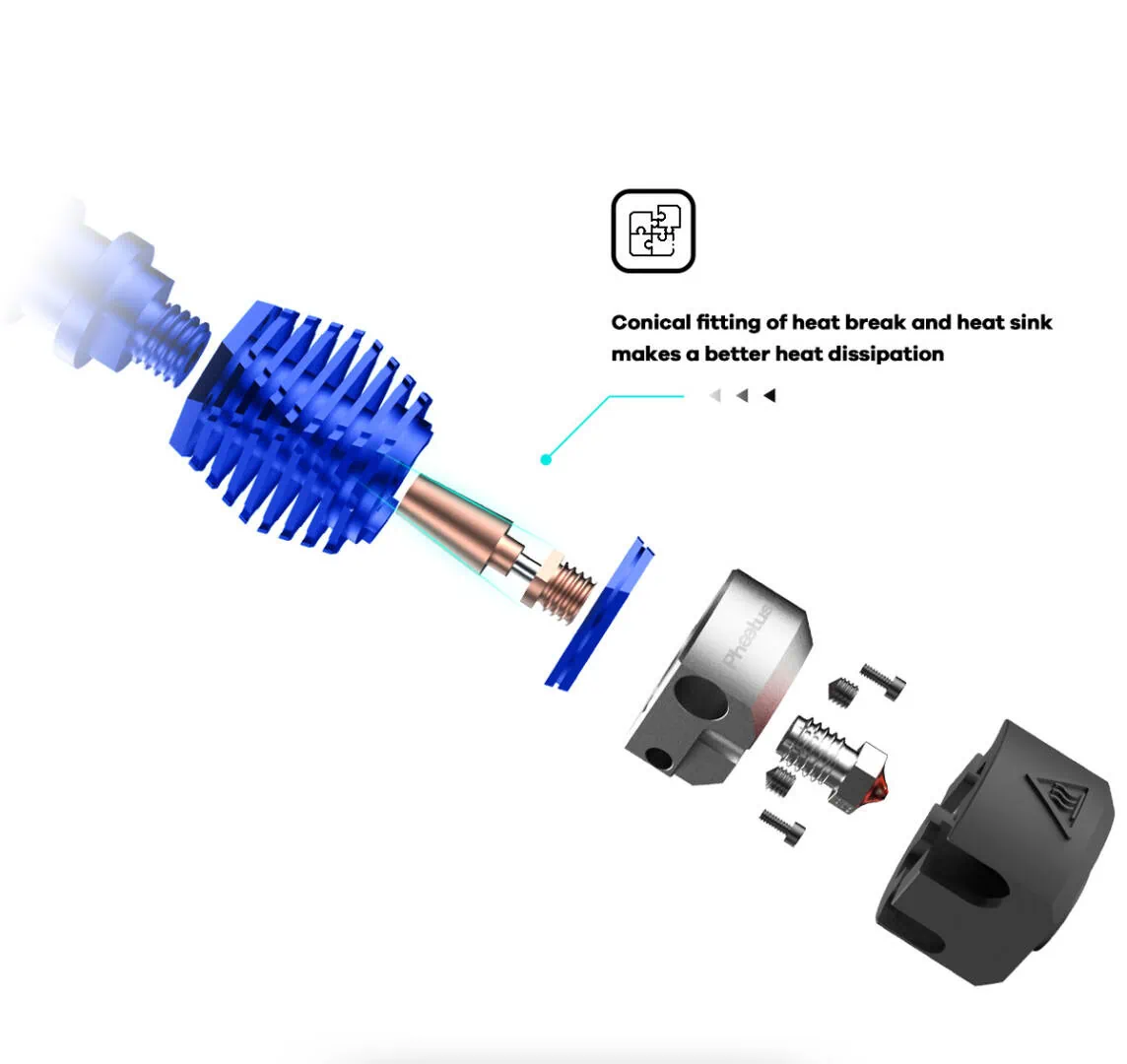

• The conical mounting of the heat switch and the radiator makes a perfect heat dissipation.

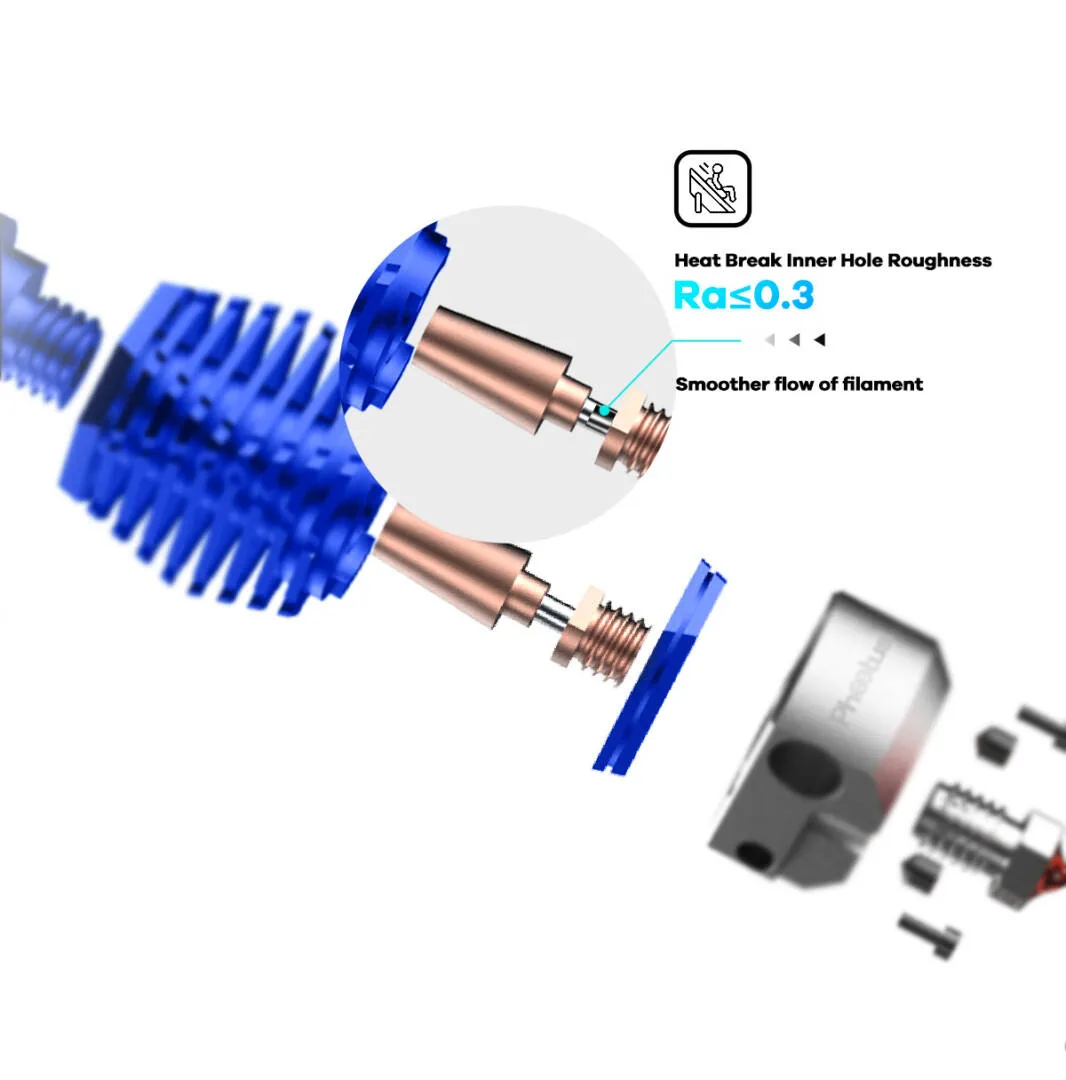

• The roughness of the inner hole of the thermal break Ra≤0.3, which allows smoother movement of the filament, resulting in higher resolution of the prints.

Compatibility

• V6 adapter status: all V6 HOTEND interfaces, Prusa I3 MK3/MK3S, Titan extruder, BMG extruder
• Without V6 adapter status, compatible with DIY design

Details

• Nozzle diameter: can be combined arbitrarily
• Size: 49 mm x 21 mm x 24 mm
• Material processing process:High strength and high conductivity plated copper, hexagonal hardened steel, high quality brass alloy, high strength and low dementia aluminum alloy
• Appearance colour: blue/black
• Net weight: 38 g
• Applicable Materials:Compatible with all filaments including:PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI and composites containing abrasive additives such as carbon fiber, steel, wood, boron carbide, tungsten and phosphorescent pigment.

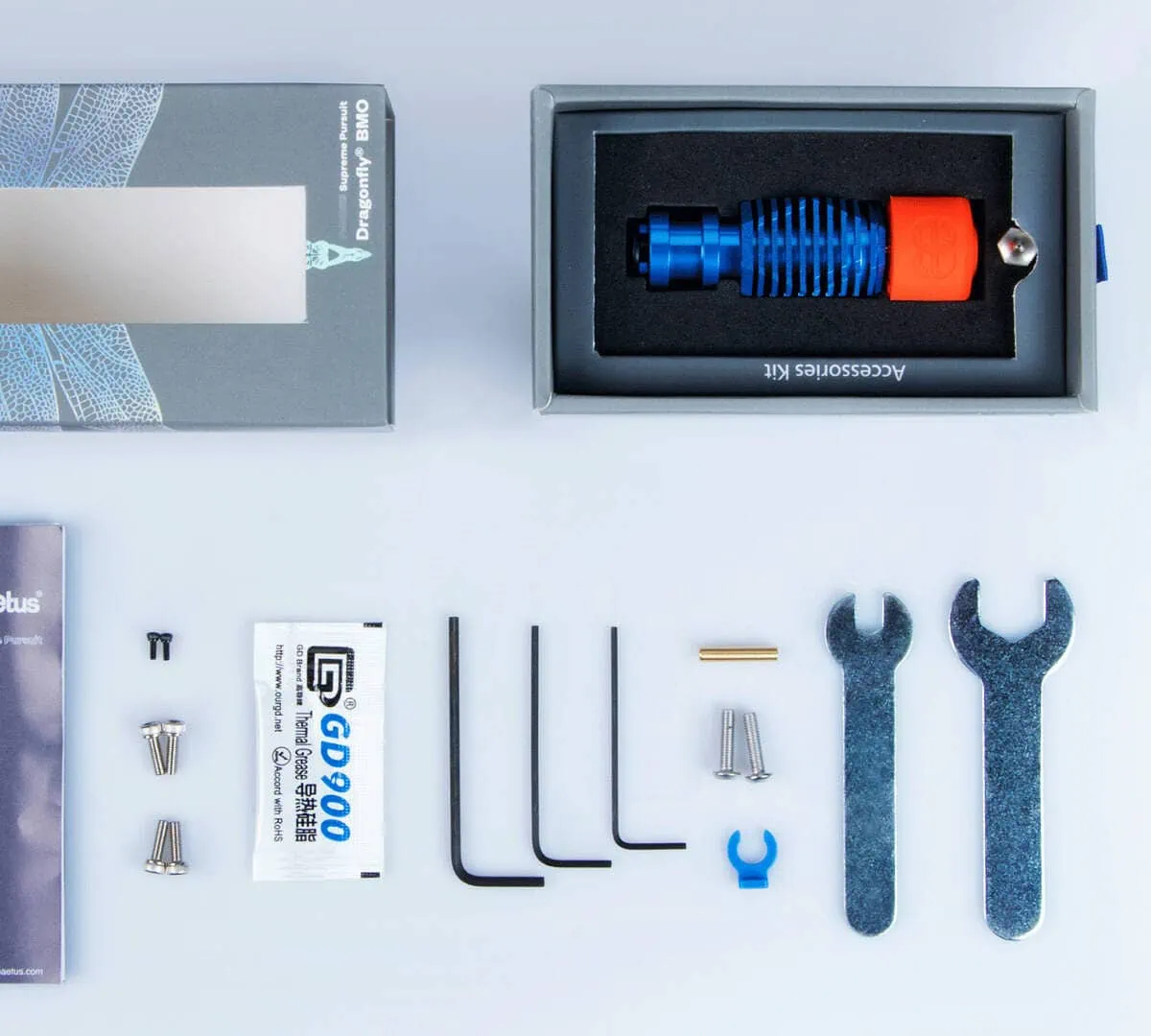

Gear list:

• Hexagonal bar (1,27/1,50/2,00 each)
• Open end wrench (5 mm/12 mm each)
• Internal hexagon screws M1.4 *2pcs.
• Hex head screws M2.5 *4pcs.
• M3 Fastening screws *2pcs.
• Collection clip *1pc.
• Drive tube *1pc.
• Sock *1 pc.
• Heat conductive silicone *1pc.
