Anycubic Photon M7 Pro

Anycubic Photon M7 Pro

Anycubic Photon Mono M7 Pro

Pioneer for 0.1 mm layer height testing | 130 mm/h even for standard resins | 14K high precision optical system

The Light, the Creator of all

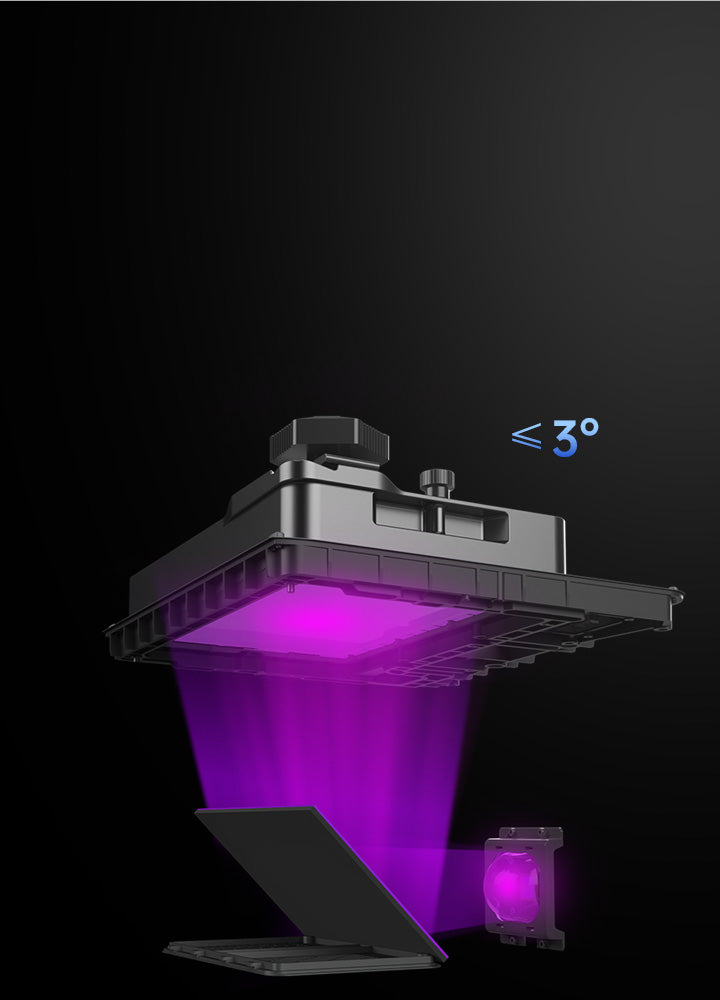

The all-new 14K LighTurbo 3.0 optical source system

LighTurbo 3.0

The COB light source system combined with Fresnel lenses and front reflectors, The uniformity of light on the screen is ≥ 90% and model accuracy errors of ±0.01-0.05 mm are achieved

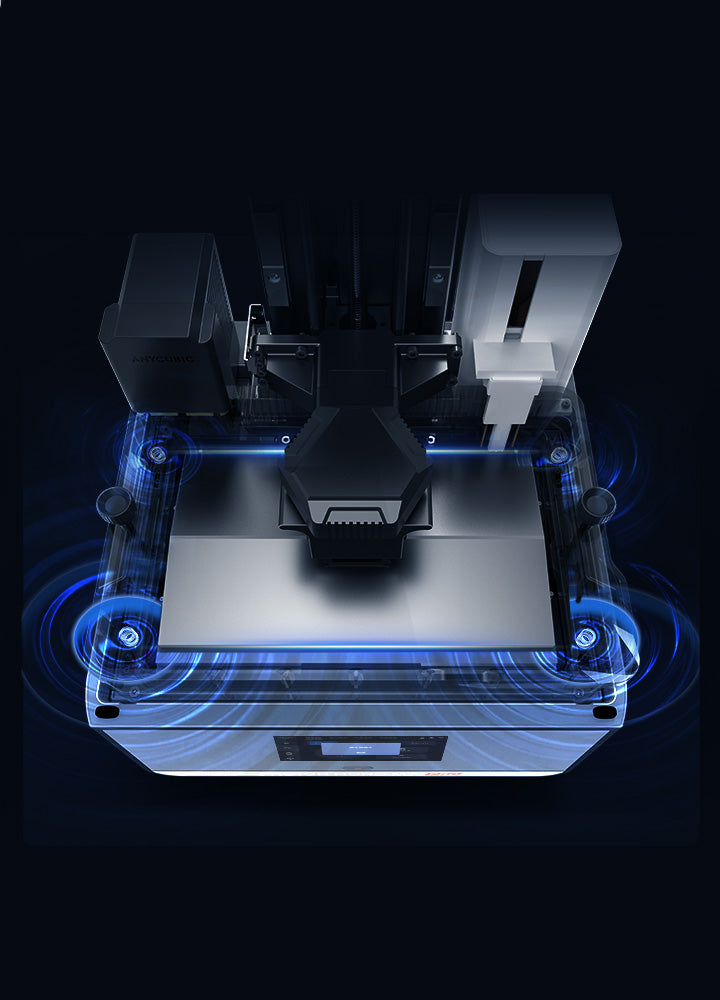

Free Alignment Complementary Anycubic AirPure

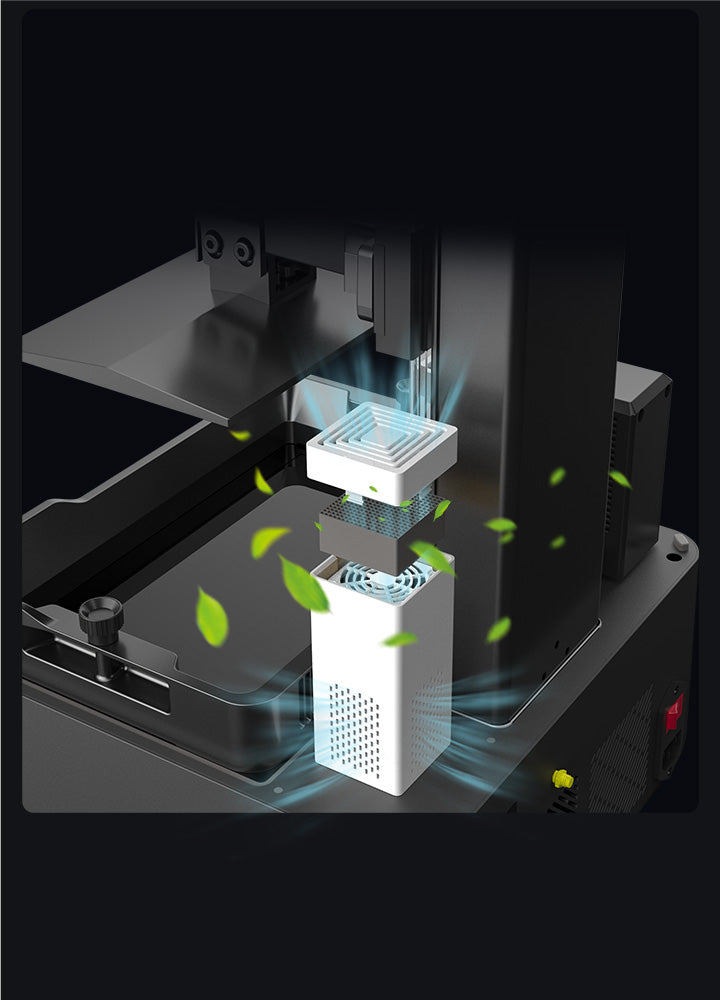

Automatic precision leveling and resetting of the device, which Built-in activated carbon filter and high-efficiency ventilation

Eliminates the need for manual motor leveling operations; VOC content purification efficiency reaches up to 99% in a single operation; Effectively absorbs and filters resin odors near the print source, providing a cleaner and more relaxed user experience.

Specification

• Build volume

  6.5L

• Printing volume

  223*126*230mm

• Printing speed

  Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin; Max Speed190mm/h, 0.15mm Layer With High-Speed Resin; Max Speed 220mm/h, 0.2mm Layer With High-Speed Resin

• Machine leveling

  Leveling-free

• Z axis

  Type T (Transport Ball Screw)

• Lcd screen size

  10.1″, 14K (13320 * 5120)

• Light source

  LighTurbo 3.0 (COB+Fresnel Lens)

• Build platform

  Laser-carved Plate

• Operating screen

  5″ IPS Touch-control

• Slicing software

  Anycubic Slicing, CHITU,Tango (CHITU and Tango can be supported around the end of May)

• Material

  Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.)

• Machine dimensions

  310*315*520mm
