Overview

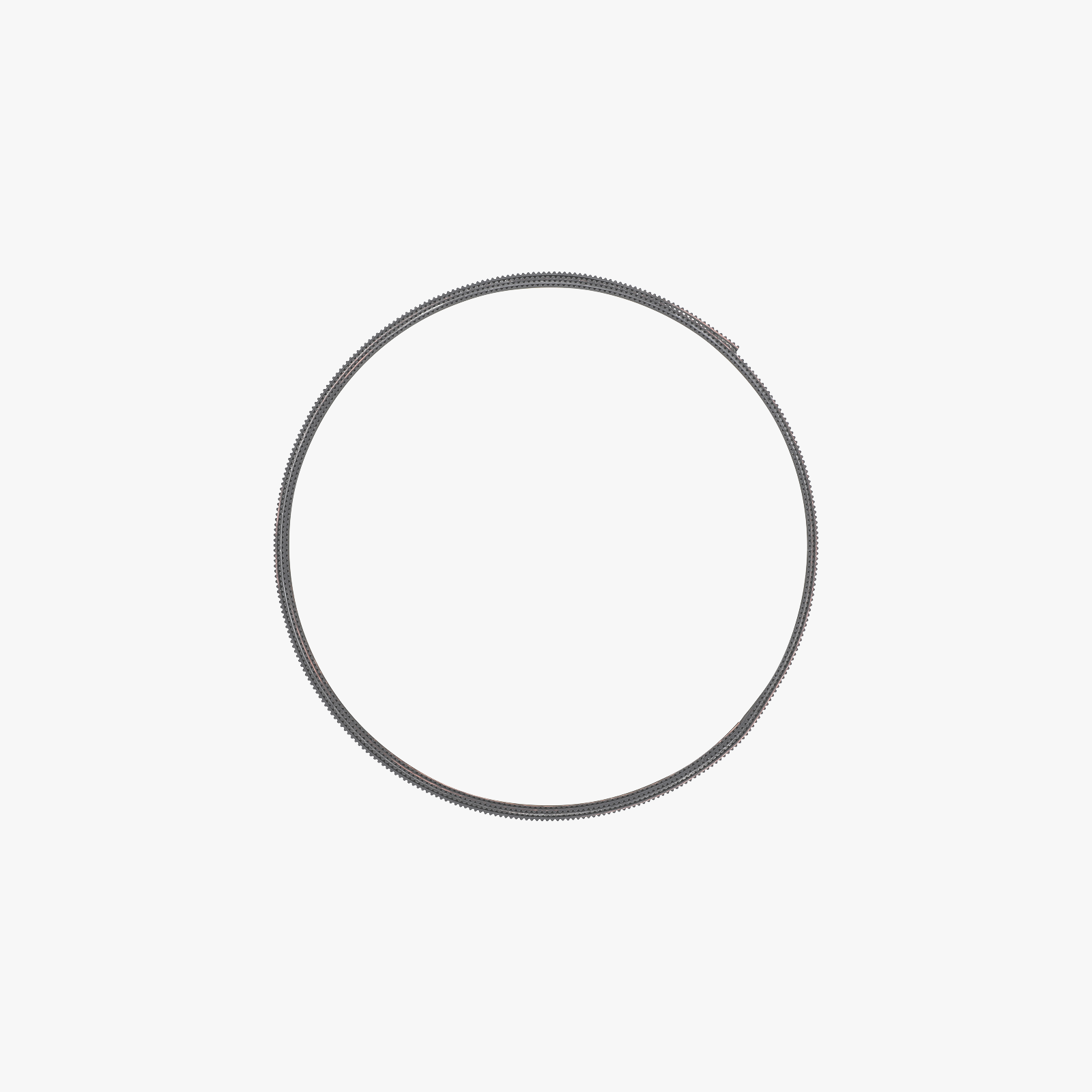

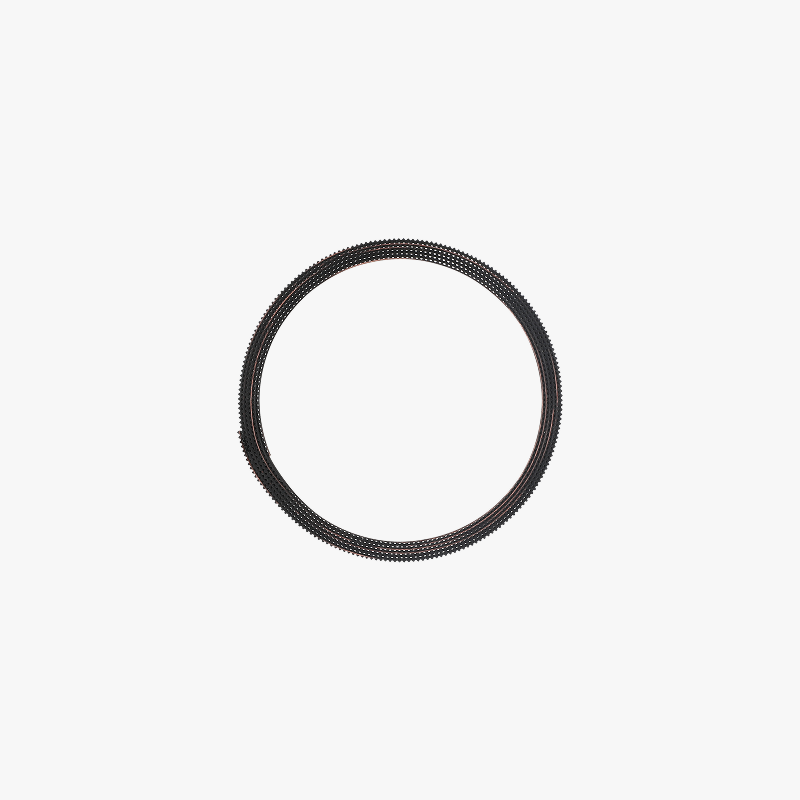

The XY belt connects the XY motor and the toolhead,
by driving the movement of the head along the X and Y axes.

Installation

Learn more about the XY belt for H2D/H2C in Bambu Lab Wiki.
Learn more about the XY strap for H2S in Bambu Lab Wiki.

In the box

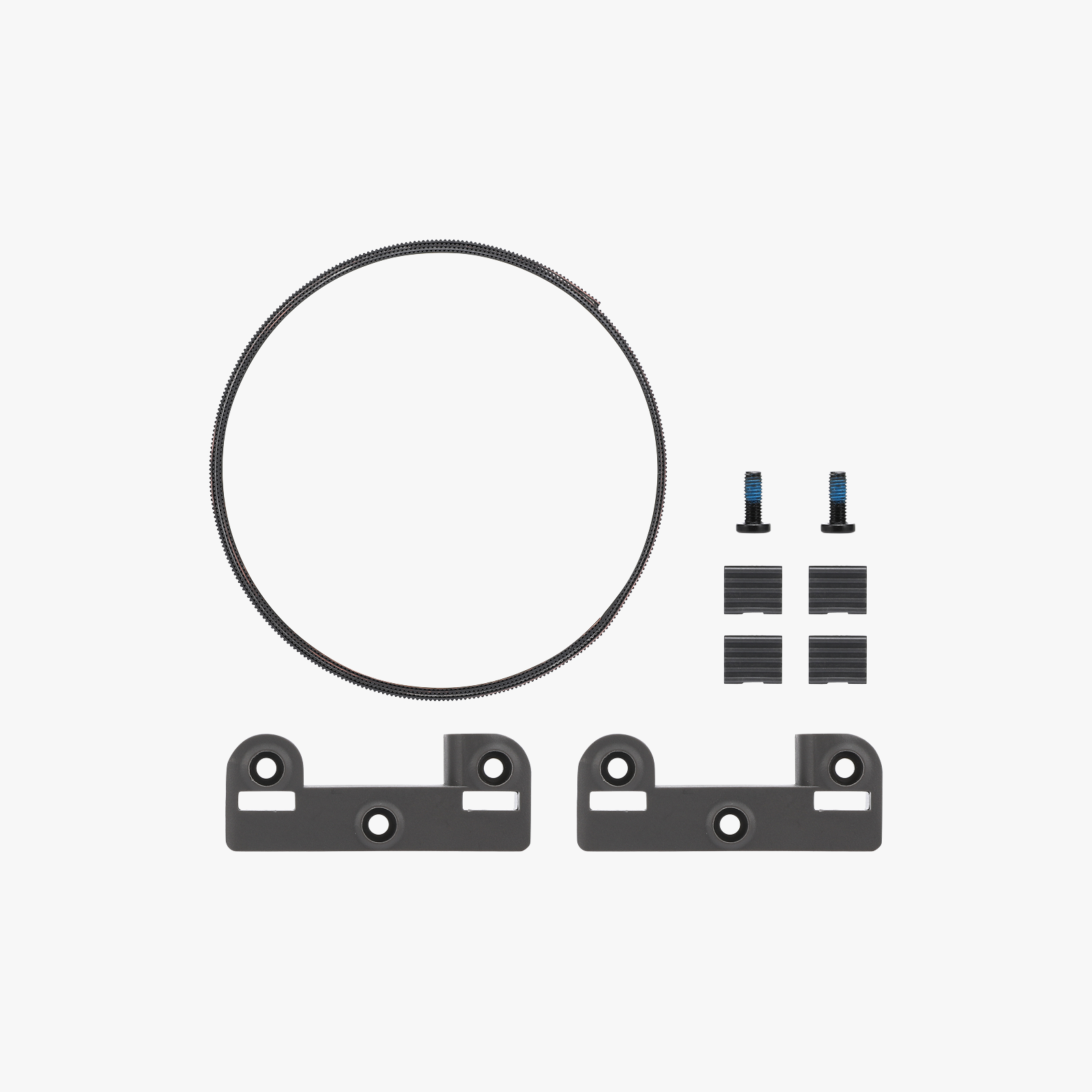

For H2D/H2C:

• XY belt ×2
• Fixing block for belt ×4
• Fixing clamp for belt ×2
• Screw M3-8 ×6

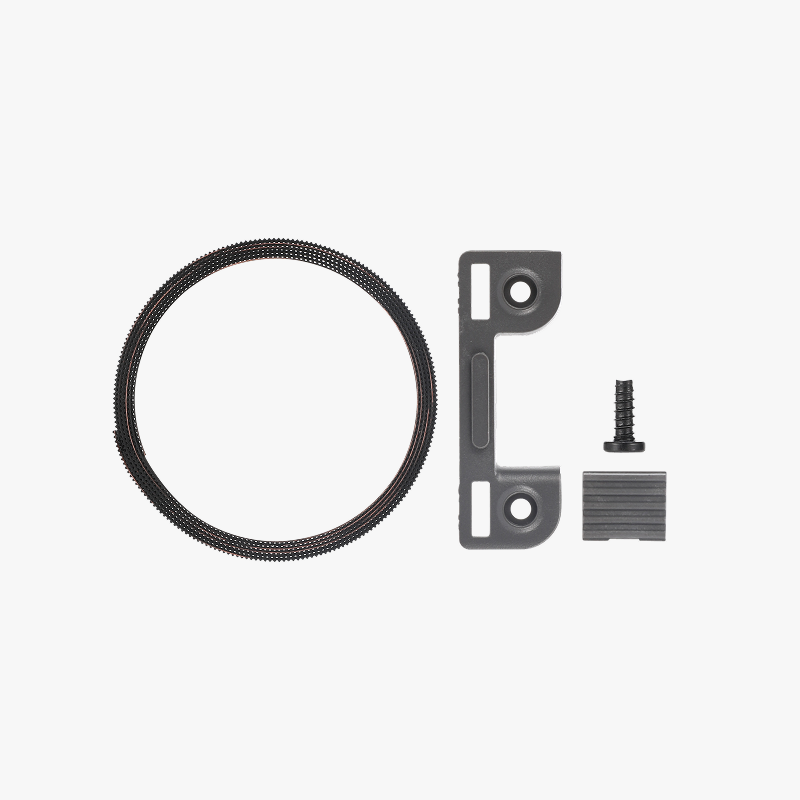

For H2S:

• XY belt ×2
• Belt fixing block (left) ×1
• Belt fixing block (right) ×1
• Belt tensioning block ×4
• Screw BT3-8 ×4

Compatibility

• H2D and H2D Laser
• H2S and H2S Laser
