Full set of stainless steel 0.4 – X1 – Babu Lab
0.2 mm nozzle – optimum print fineness
- Smaller diameter extrudes thinner filaments
- High resolution horizontal printing surface
0.6 mm and 0.8 mm nozzle – higher printing speed
- The larger diameter extrudes more filaments per second, resulting in a higher print speed
Comparison of different nozzle sizes
| 0.2 mm nozzle |
0.4 mm nozzle |
0.6 mm nozzle |
0.8 mm nozzle |
|
| Scenario of use | Ideal for small and complex models, with precision that’s worth the wait |
Ideal for everyday use with a perfect balance of speed and quality |
Higher speeds and the ability for to print high-performance filaments, with some reduction in resolution |
Higher speeds and the ability for to print high-performance threads, with some reduction in resolution |
| Usually used for | Miniature patterns Complex logos Text Shapes |
Toys Mechanical parts Decorative items |
Large structural parts Functional household parts Industrial or engineering parts High strength models |
Large structural parts Functional household parts Industrial or engineering parts High strength models |
*The final display of “Model Strength” and “Model Fineness” depends on the material test results.
Compatibility of filaments
| Material | 0.2 mm nozzle | 0.4 mm nozzle | 0.6 mm nozzle | 0.8 mm nozzle | Is a hardened steel nozzle necessary? |
| Standard PLA | YES | YES | YES | YES | Optional |
| PLA Shiny | *NO | YES | YES | YES | Optional |
| PLA Marble | *NO | YES | YES | YES | Optional |
| Wooden/Metal filled PLA | *NO | YES | YES | YES | Optional |
| PETG | YES | YES | YES | YES | Optional |
| PVA | YES | YES | YES | YES | Optional |
| ABS | YES | YES | YES | YES | Optional |
| ASA | YES | YES | YES | YES | Optional |
| PC | YES | YES | YES | YES | Optional |
| PA | *NO | YES | YES | YES | Optional |
| TPU | *NO | YES | YES | YES | Optional |
| Bambu PLA-CF | *NO | *Highly recommended |
YES | YES | *Required |
| Bambu PETG-CF | *NO | *Highly recommended |
YES | YES | *Required |
| Bambu PAHT-CF | *NO | YES | *Highly recommended |
YES | *Required |
| Bambu PET-CF | *NO | YES | *Highly recommended |
YES | *Required |
| CF/GF Filaments of other brands |
*NO | NOT recommended | YES | YES | *Required |
Remark:
- Fibers with carbon fibers, glass fibers, metal or other inorganic particles tend to clog the nozzle with a diameter of 0.2 mm.

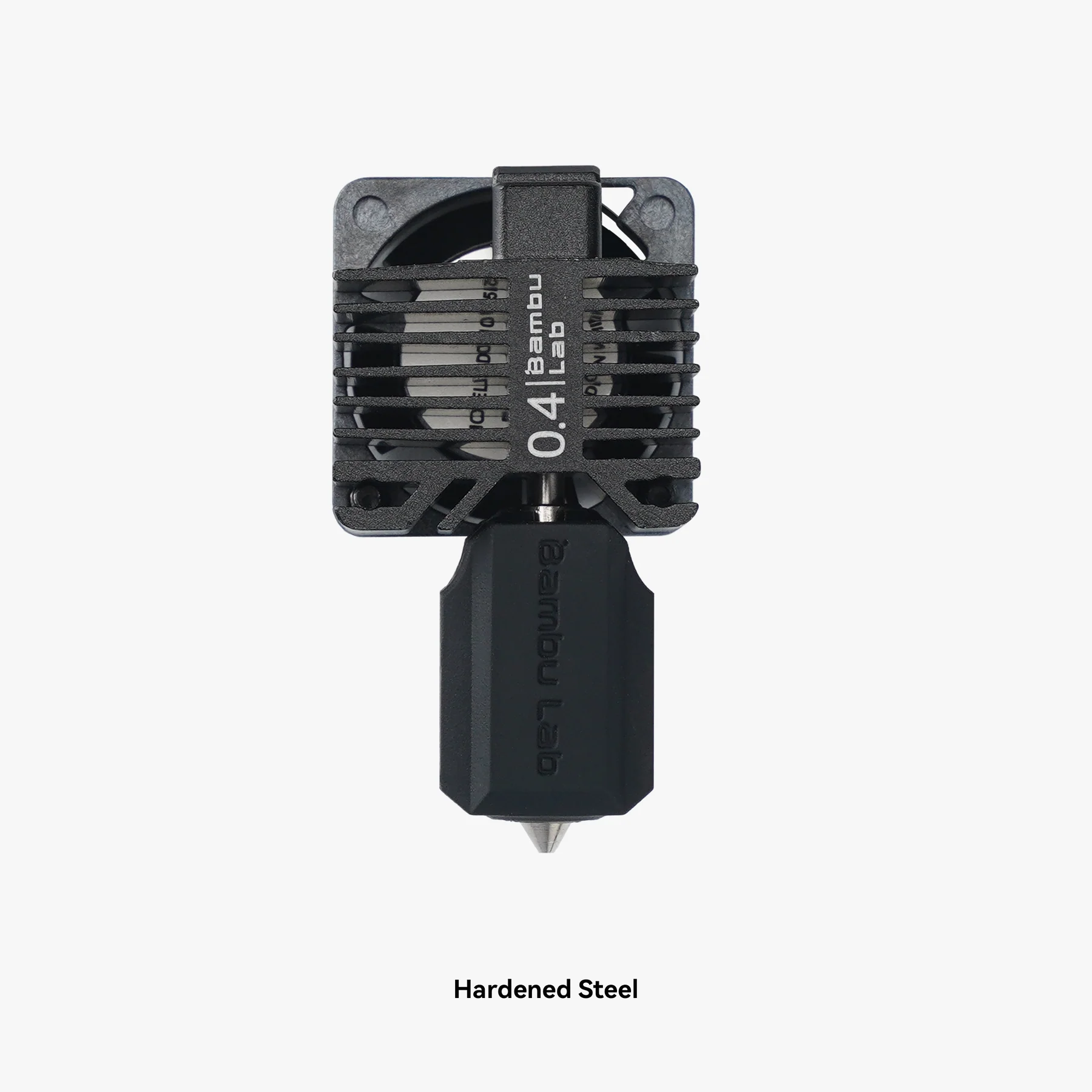

- For filaments containing carbon fibres or glass fibres, it is highly recommended to use a hardened steel nozzle with a diameter of 0 ,6 mm to minimise the risk of clogging and abrasion.
- Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a 0.4mm hardened steel nozzle, while achieving a higher print quality.
Learn more about thread compatibility in the Bambu Lab Wiki.
Replacement of a complete set of Hotend
Replacement of Hotend
Learn more about replacing the full hotend and hotend in Bambu Lab Wiki.
What’s in the box?

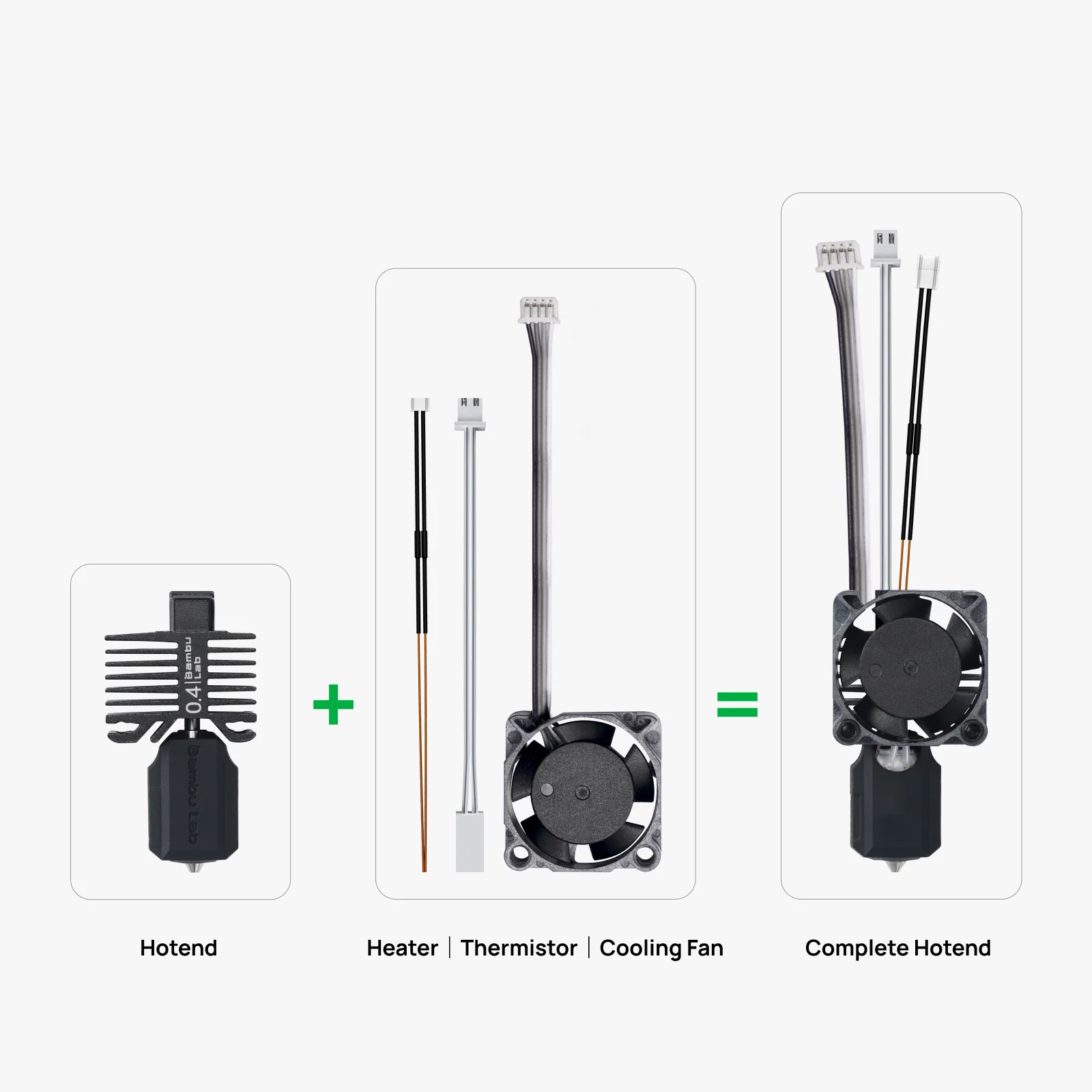

| Full set of Hotend |
Hotend |
| X1 series full set of hotend * 1 | Hotend* 1 |
| M3-14 Step screws * 2 | M3-14 Step screws * 2 |
| Silicone sock * 1 | |
| Thermal grease * 1 | |
| Holding clip * 1 |
Product Specifications
| Maximum printing temperature: |
320 ℃ | Length: | 47.3 mm |
| Package Weight: |
40 g/30 g | Pack Size: |
190*70*50 mm |
