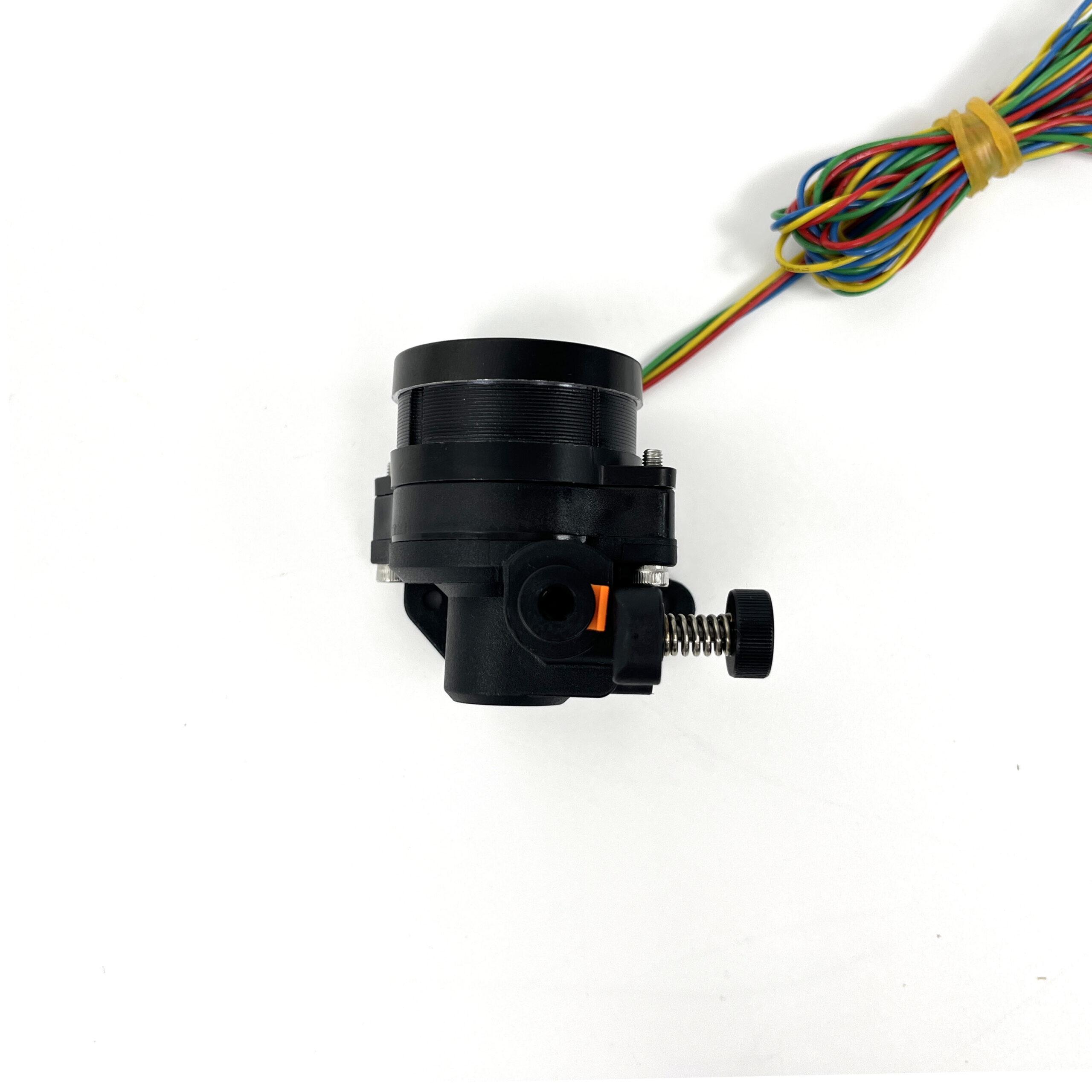

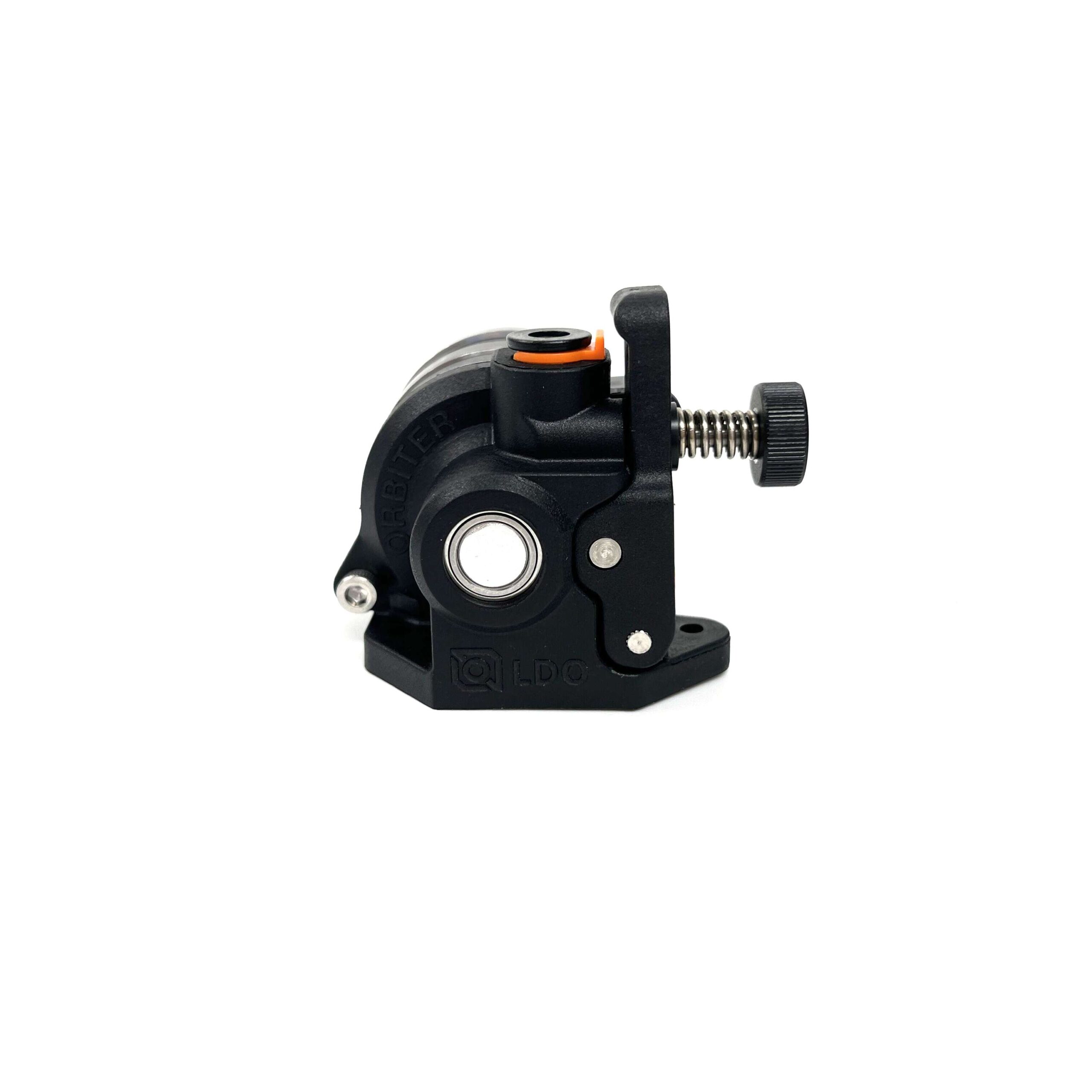

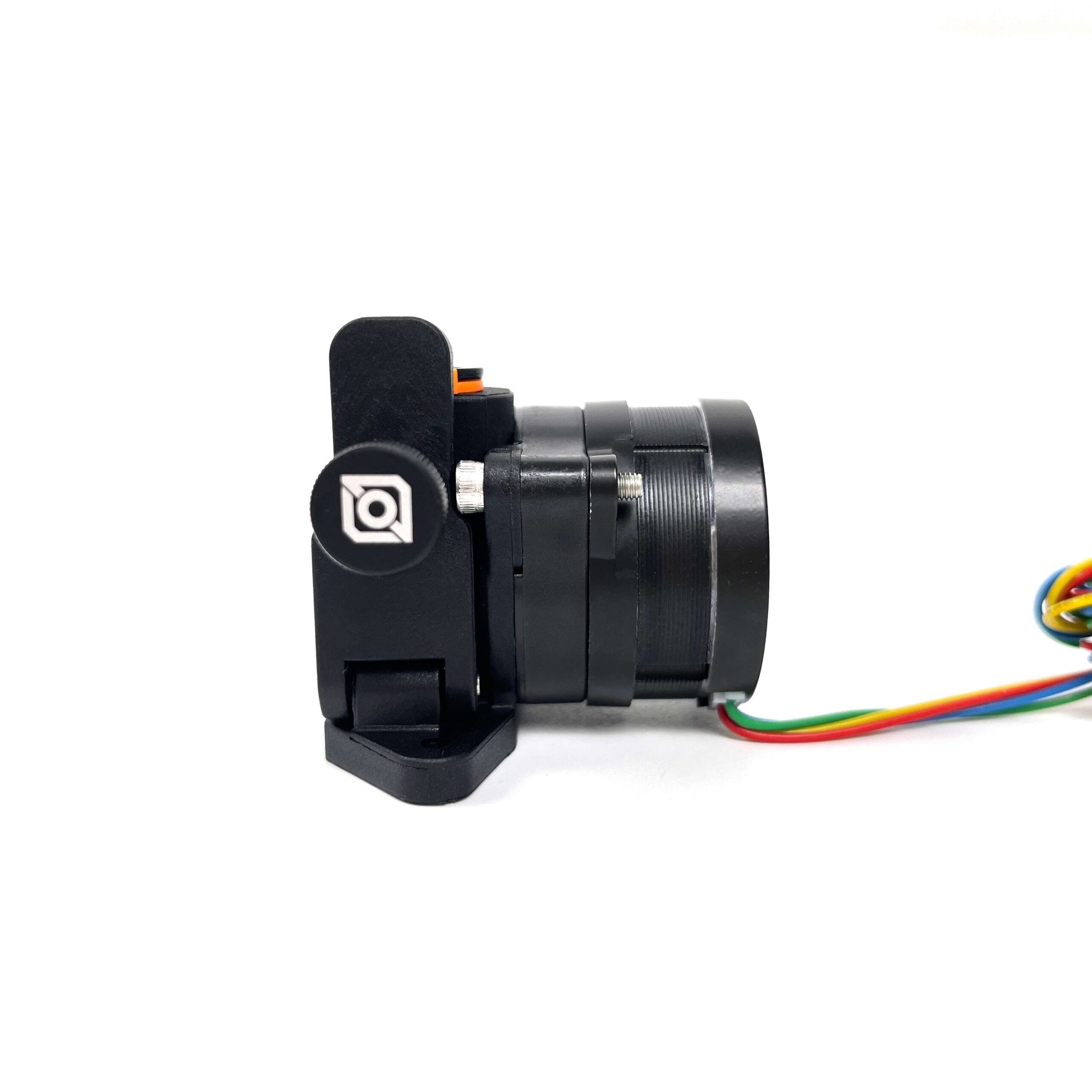

BIQU Orbiter Extruder V2.0 with Voron 2.4/CR-10/Ender3 V2/PRO motor
DESIGNED BY DR. LORINZ
DESIGNED BY LDO MOTORS
DECEMBER 2021
1
One of the most anticipated projects for 2021 -Orbiter v2.0 A high precision direct drive extruder using custom manufacturing from LDO Motors. This is our most perfect direct-drive extruder system, in which we have integrated everything we have learned about extruders in recent years.
Characteristics:
1. Shorter drive sprockets 11 mm vs. 15 mm

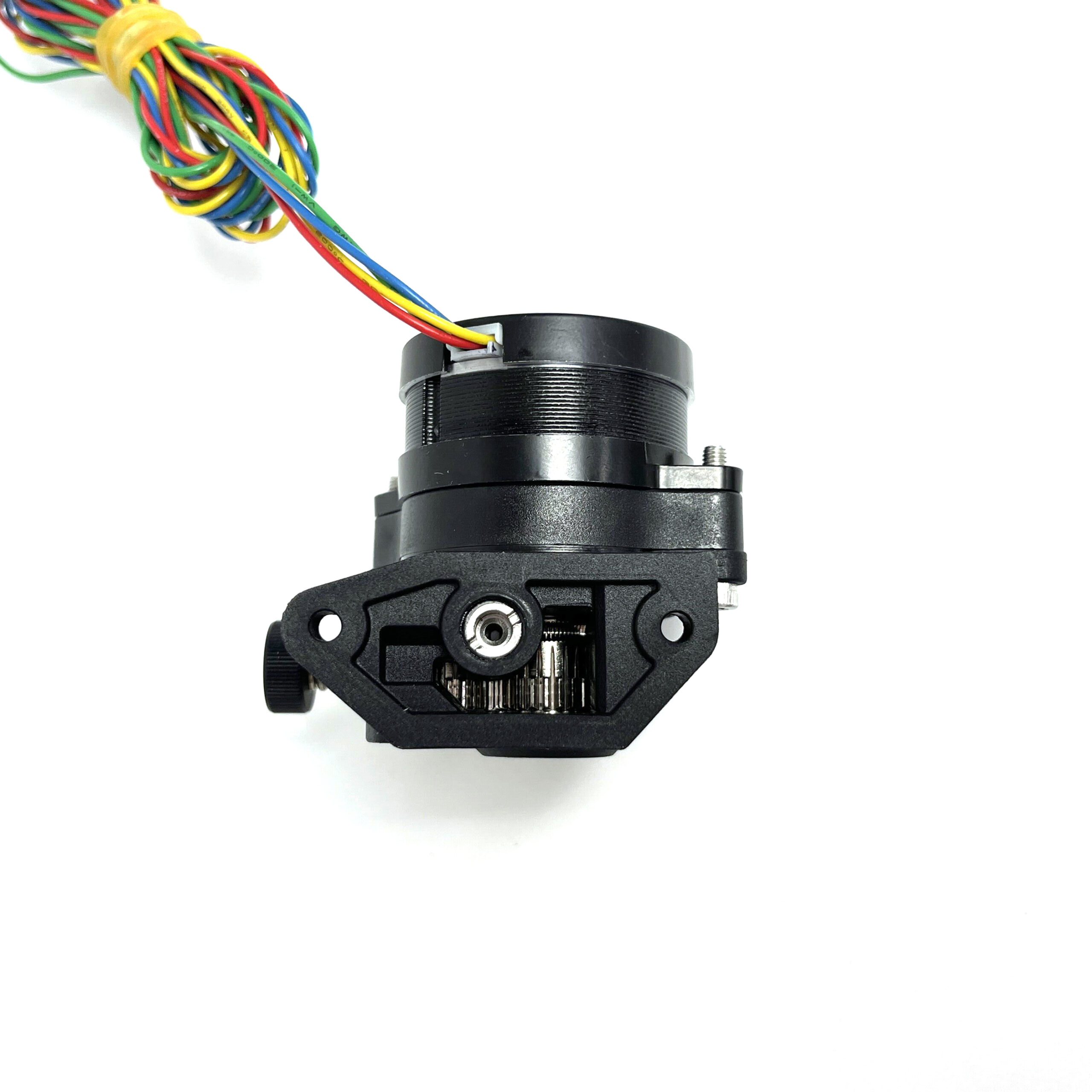

2. Hardened drive gears manufactured by Bondtech
3. Reduced weight to ~135 grams
4. Smaller and more compact size (11.6% shorter)

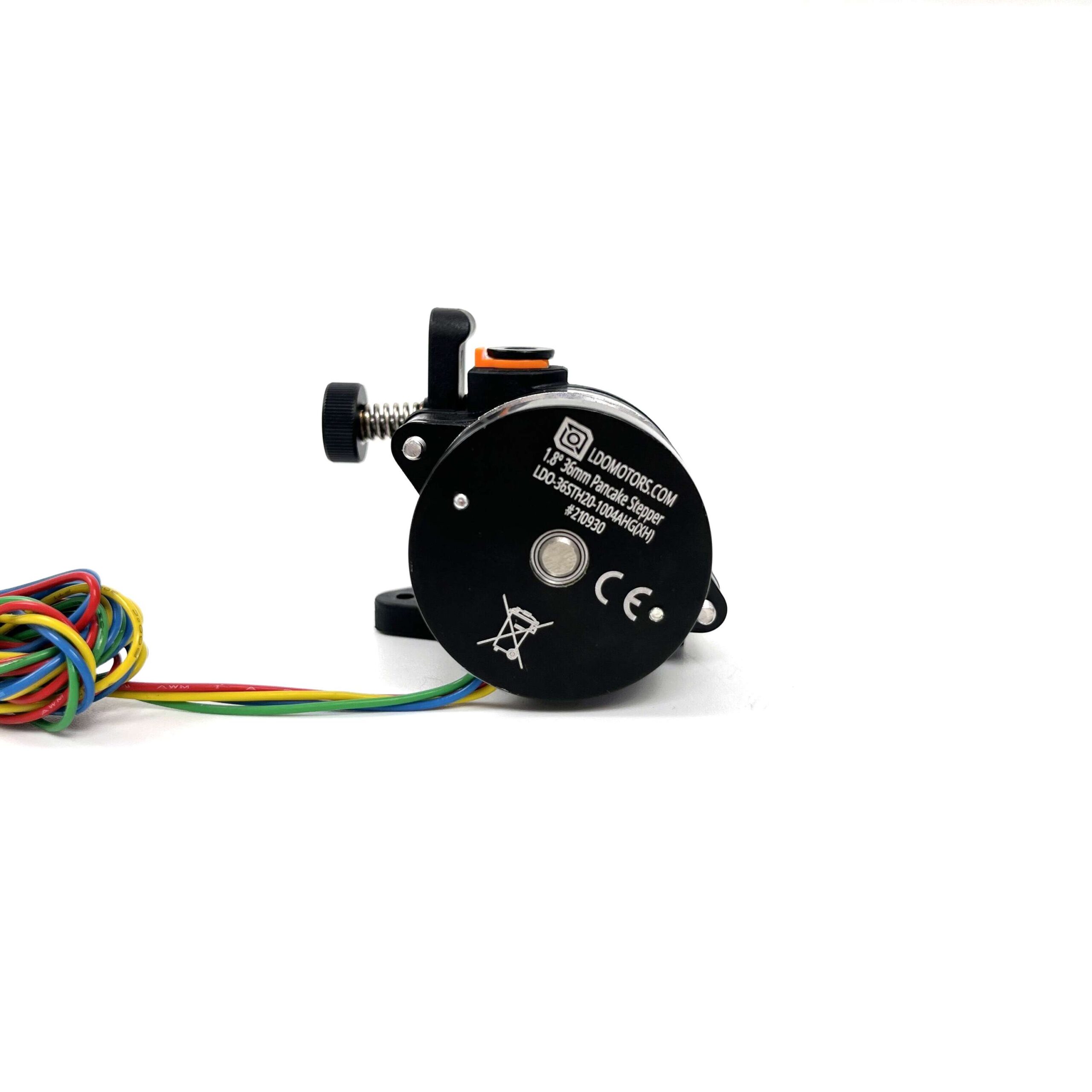

5. The new motor design offers ~40% increase in compression force in real printing conditions and much better acceleration characteristics
6. Inverted drive gears – filament trajectory closer to the center of the extruder for a more balanced design and perfect fit on delta printers as well
7. Stainless steel filament exit guide with 0.2-0.3mm clearance to the drive gears for the best TPU printing experience and exceptional abrasion resistance when using abrasive filaments.
8. High temperature resistant injection housings, GPA12
9. Machined PEEK secondary drive gear bushing

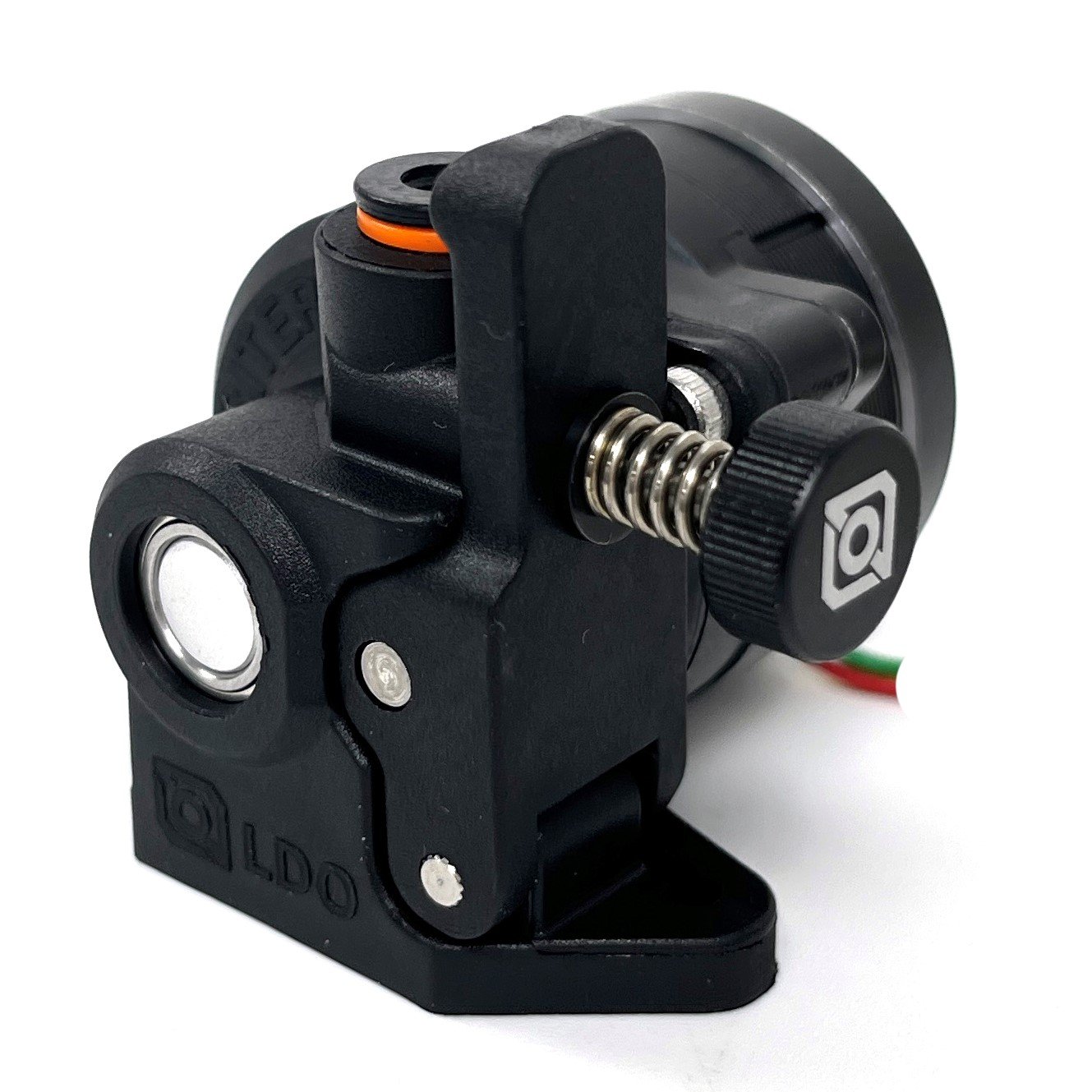

10. Captive Grab Screw Tensioning Mechanism
11. Mounting screws in accordance with the thread exit path – improve the rigidity of the housing and easier installation
12. Perfectly aligned thread path
13. New smaller and better PTFE input connector
14. Motor position is rotated an additional 10 degrees for ease of maintenance and installation
15. Optional filament sensor with automatic loading and unloading function
16. And many more small changes to improve the mechanical accuracy and appearance of the design
