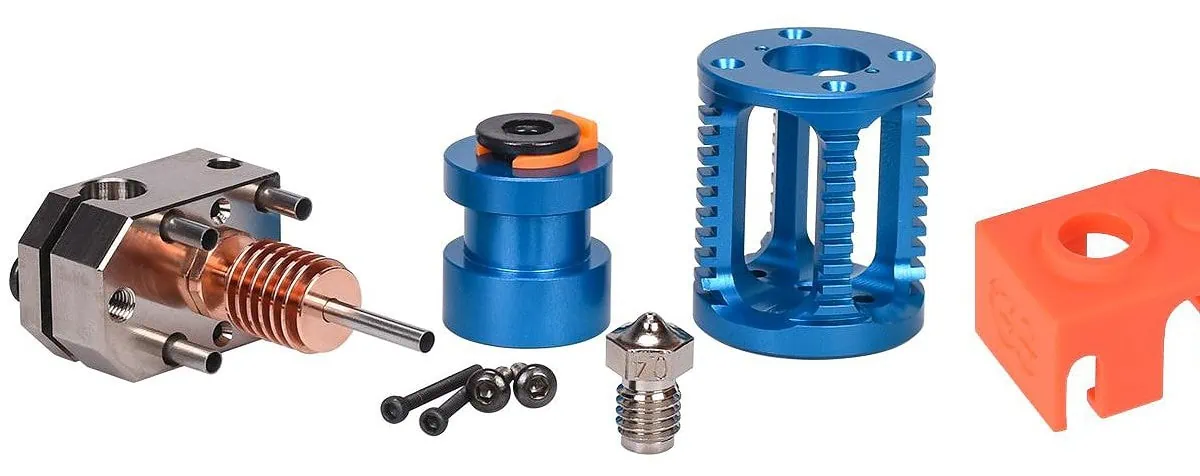

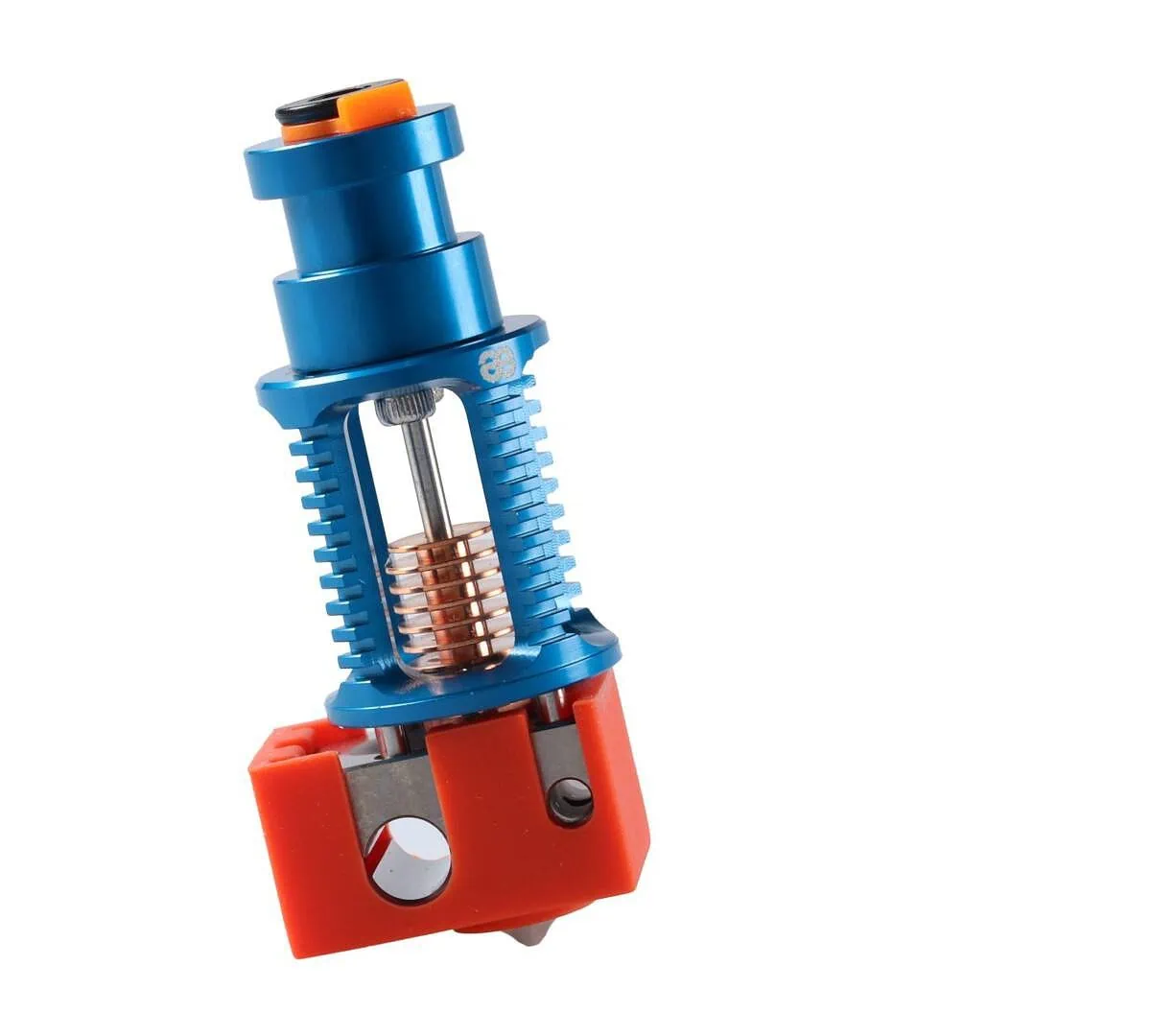

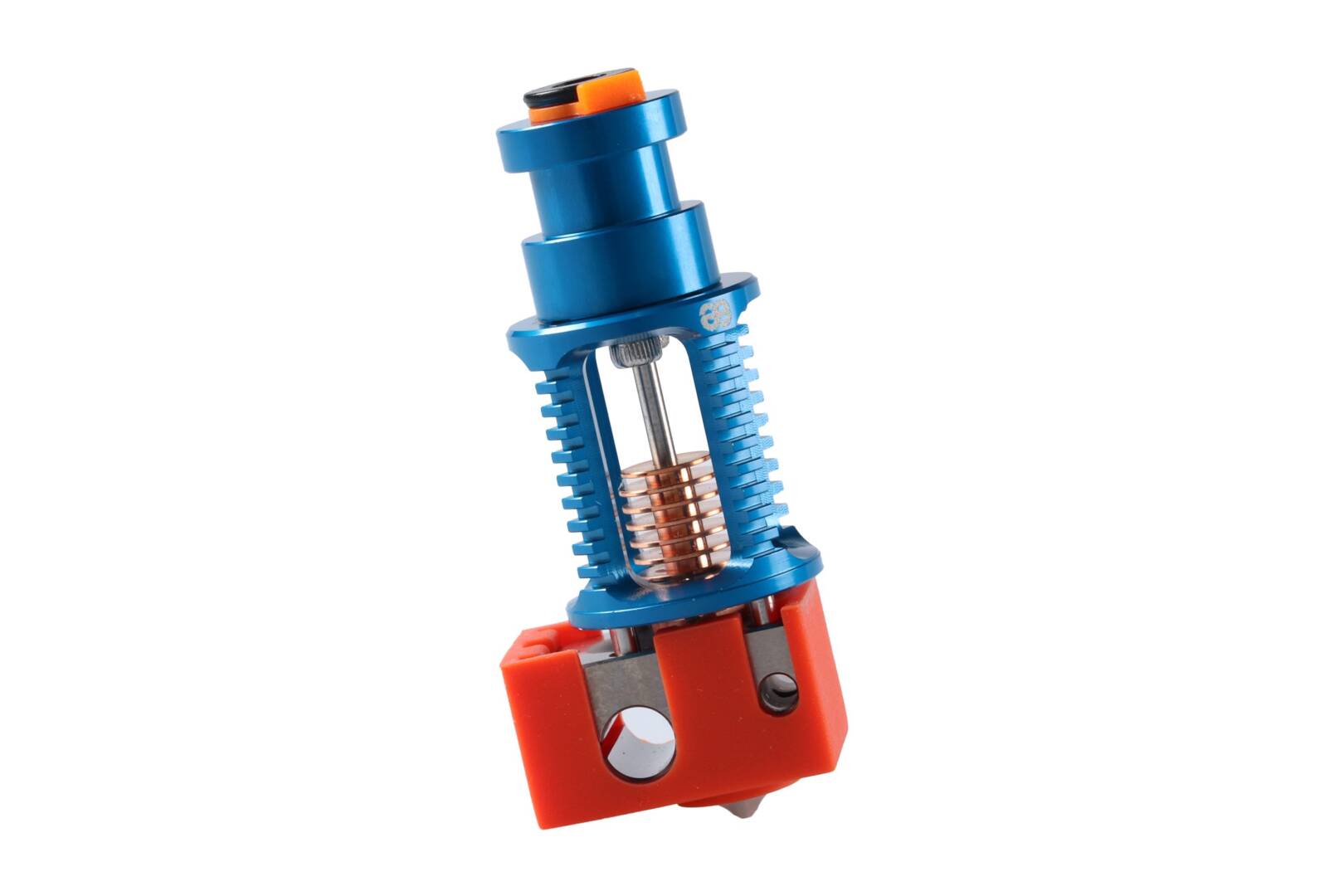

All-metal Phaetus Dragon ST Hotend

All-metal Phaetus Dragon ST Hotend

• All-metal kit with total resistance to high temperatures up to 500℃.
• Thermal breaker with ultra-thin wall thickness of 0.1 mm, realizing excellent thermal insulation.
• The increased rigid support structure ensures that the thermal breaker remains intact under the influence of external force.
• The built-in rigid frame structure makes nozzle replacement more convenient without gripping the heat block.
• The roughness of the inner orifice of the nozzle and heat block is 0.4, which allows smoother movement of the filament, resulting in higher resolution prints.
• The ST and HF versions have the same overall dimensions, which realizes zero barrier to interchangeability.
• The hot end is mainly composed of copper alloy material, which has the advantage of faster heating and better heat dissipation.
• The flexible design of the combined structure ensures strong compatibility.

Compatibility

With a V6 adapter:

• All V6 compatible Hot-End interfaces
• Prusa I3 MK3 / MK3S
• Titan Extruder
• BMG extruder

Mounting brackets for various printers:

Prusa I3 MK3/MK3S STL mounting bracket: https://www.prusa3d.com/prusa-i3-printable-parts/
Creality CR-10, MicroSwiss, E3Dv6 / Volcano, Tevo Tornado / Tarantula: https://www.thingiverse.com/thing:2759439

The standard flow rate is about 15~20mm³/s
