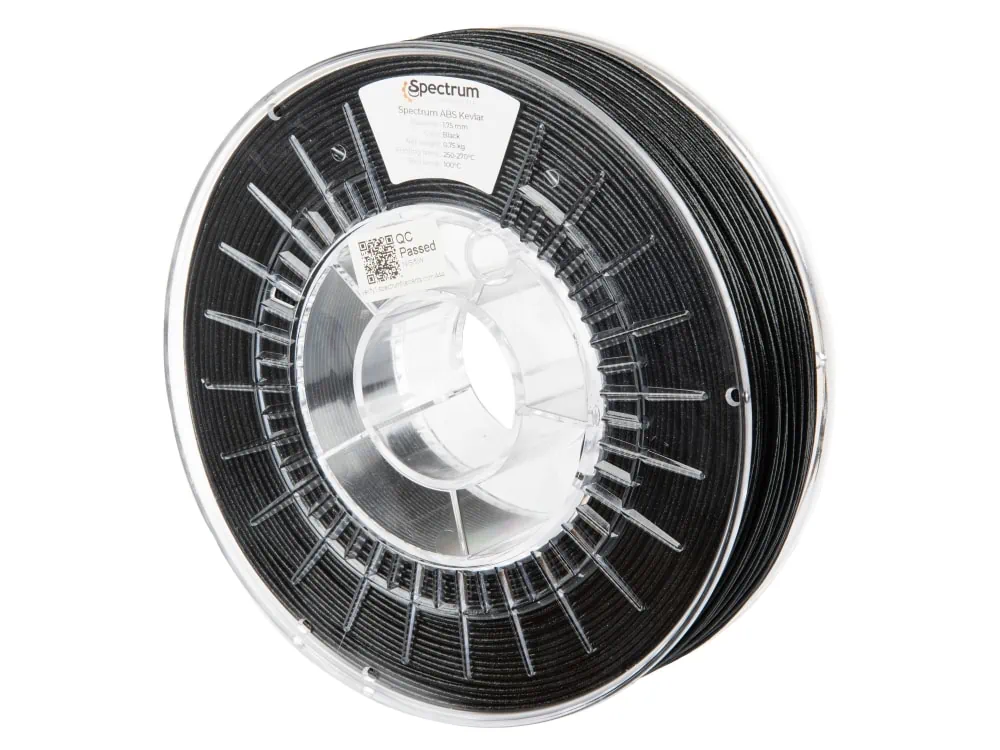

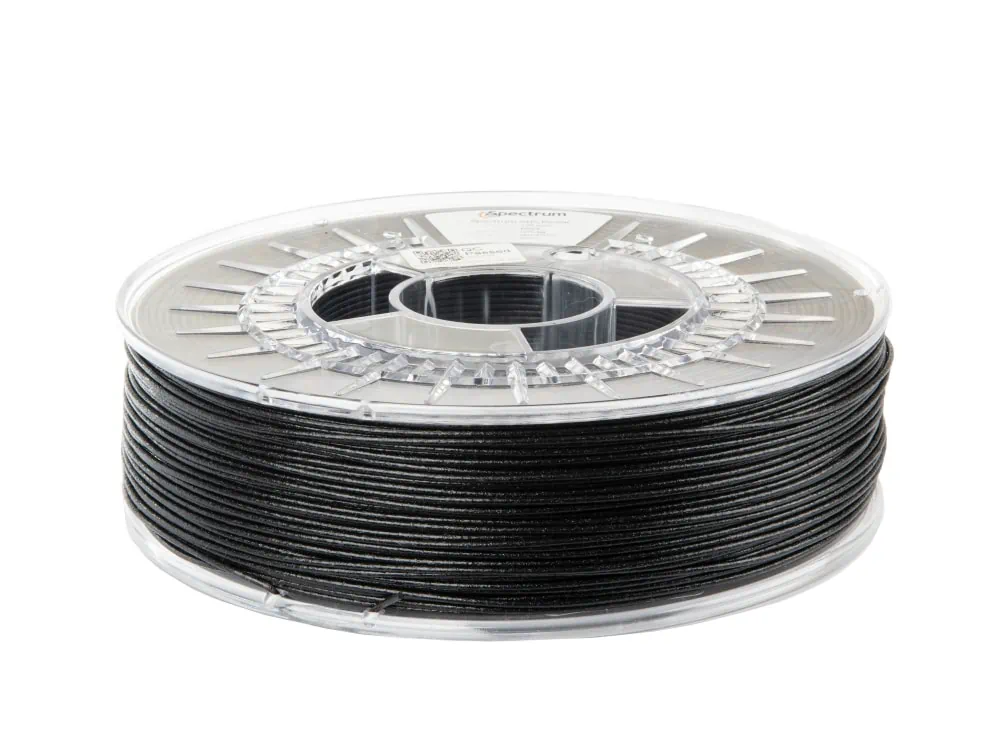

ABS Kevlar Filament – Black – Spectrum

ABS Kevlar Filament – Black – Spectrum

Spectrum ABS Kevlar is an ABS-based structural composite filament with the addition of aramid fibers known as Kevlar.

ABS reinforced with aramid fibres

Spectrum ABS Kevlar is an ABS-based structural composite filament with the addition of aramid fibers known as Kevlar. The search for properties superior to those offered by standard ABS, for durability and for increased tensile strength, has given rise to actions aimed at combining the very good properties of ABS with aramid fibres.

The modifications applied resulted in reduced shrinkage, excellent adhesion to the work platforms and reduced material density, meaning the printed parts are slightly lighter than their counterparts made with standard ABS. The excellent dimensional stability enables 3D printing of objects with precise dimensions, which is particularly important for projects consisting of multiple parts.

Key Features:

• industrial grade material
• material enriched with aramid fibres
• Vicat softening point: 95°C
• Heat Deflection Temperature (HDT): 88°C
• high hardness and impact strength
• high mechanical strength
• very strong layer lamination

Applications:

• automotive industry
• production of parts for end use
• production tools
• creating functional prototypes
• non-standard components
• assembly tools
• production of housings and covers

General information

Material Group – ABS
Colour – Black
Spectrum Colour Name – Black
Diameter – 1.75mm
Dimensional Tolerance ±0.03mm
Check your reel – view diameter stroke along entire length of reel – YES
Density – 1.05 g/cm³
Net Weight – 750g
Total Weight – 1150g

Recommended print settings

Printing temperature – 250-270°C
Heated bed – required
Heated bed temperature – 100°C
Printing speed – 30-70 mm/s
Closed chamber – Not required

Spool dimensions

Outer diameter – 200 mm
Width – 55 mm
Inner diameter – 52 mm
Weight of empty spool ± 220g
