Water-Washable Dental Model – Beige – Phrozen
Description

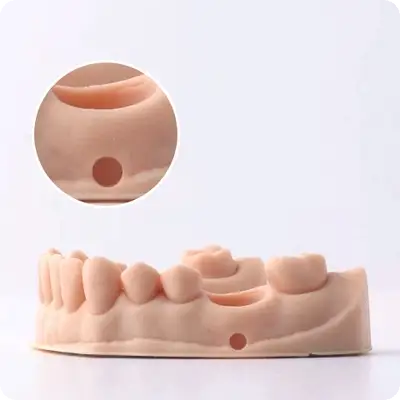

Water washable resin for dental models provides a high level of accuracy after curing with minimal shrinkage. Its water-washable formula makes it easy and safe to work with even in an office environment, providing convenience for patients and practitioners alike. With more than 90% variation with ±0.05mm tolerance, Water-Washable Dental Model Resin exhibits incredibly high accuracy when scanned and compared to the actual STL file, making it reliable for detailed diagnostic models.
Ideal for printing on:
。Models of crowns and bridges with movable moulds
。Analog models of implants
。Diagnostic models
Before we print the perfect object, it’s important to first understand the limitations of the material we’re working with and how it can be successfully printed under different conditions. With this in mind, Phrozen provides the following design suggestions to help you better understand the properties of each material and how best to use them to bring your wildest creation to life.
Properties
| Mechanical properties: | Unit | Results | Method |
| Bending strength: | MPa | 65.7 | ASTM D790 |
| Bending module: | MPa | 1542 | ASTM D790 |
| Shore D hardness: | – | 76 | ASTM 2240 |
| Thermal dimensional stability at 60°C: | μm | <100 | ASTM D1204 |
| Properties of the liquid: | |||
| Viscosity at 25°C (77°F): | cP | 60 – 100 | ASTM D1475 |
| Liquid density: | g/cm³ | 1.1 | ASTM D7867 |
Print parameters
| Printer: | Sonic 4K 2022 |
| Layer height: | 50μm |
| Exposure time: | 4~6 s |
| Time of upper exposure: | 25~35 с |
| Break time: | 1~3 с |
| Lifting distance: | 7 mm |
| Lifting speed: | 50 mm/min |
| Printer: | Sonic 4K XL 2022 |
| Layer height: | 50μm |
| Exposure time: | 2~4 с |
| Time of upper exposure: | 25~35 с |
| Break time: | 1~3 с |
| Lifting distance: | 7 mm |
| Lifting speed: | 50 mm/min |
Suggestions for printing
Shake the resin well before pouring it into the vat.
Full plate printing
When printing prints in full plate, it is recommended to add 1-2 seconds of rest time.
Cleaning
After removing the printed object from the build stage, use an ultrasonic cleaner and clean water for 5 minutes to remove uncured resin from the surface. Make sure the object is thoroughly cleaned, then leave it in a dark place for up to 30 minutes or use an air gun to dry the printed object immediately.
Avoid scrubbing the printed object as this can cause excessive cleaning and affect precision tolerances.
After curing
Use Phrozen post-cure lamps (Cure V2, Cure Luna, Cure Mega) or other post-cure lamps of the same wavelength to cure printed objects. Cure for 30 minutes to achieve good mechanical properties and precision.
Design specifications
※Note: All indicators are limited for each resin; the value will vary with different machines and environmental conditions.
Minimum unsupported wall thickness
This metric indicates the minimum wall thickness that can be printed independently without support without causing flexing or breakage.
Recommended thickness：≥0.4 mm
Size tolerance, X-Y plane
This indicator shows the minimum allowable dimensional deviation between the hole and the column, parallel to the XY plane.
Recommended tolerance：≥0.04 mm
Minimum pin diameter
This indicator shows the minimum diameter of the columns and supports that can print independently without bending or breaking.
Recommended diameter：≥0.5 mm
Minimum bore diameter, X-Y plane
This indicator shows the minimum hole diameter that can be successfully printed parallel to the XY plane.
Recommended diameter：≥1 mm
Minimum width of embossed details, X-Y plane
This indicator shows the minimum line width that can be successfully printed with embossed details.
Recommended width：≥ 0.3 mm
Minimum width of engraved parts, X-Y plane
This indicator shows the minimum line width that can be successfully printed with engraved details.
Recommended width：≥ 0.06 mm
Maximum horizontal span of the bridge
This indicator shows the maximum width between support walls that can be printed without deforming the bridge.
Recommended width：≥ 6 mm
Minimum hole diameter and width of engraved parts, Z axis, at layer height 0,05 mm
This indicator shows the minimum hole diameter and engraving groove width that can be successfully printed along the Z-axis at a layer thickness of 0.05 mm.
Recommended diameter：≥0.5 mm
Recommended width：≥0.06 mm
