Complete set of 0.6 hardened steel nozzle – P1 series – Bambu Lab
Main characteristics of the different nozzle diameters
0.2 mm nozzle
Optimum print fineness
- Extremely small distances between layers
- More detailed vertical printing surface
0.2 mm nozzle
Optimum print fineness
- Smaller diameter extrudes thinner filaments
- High resolution horizontal printing surface
0.6 mm and 0.8 mm nozzle
Higher printing speed
The larger diameter extrudes more filaments per second, resulting in a higher print speed
The 0.4mm nozzle is widely recognized as the standard nozzle for modern 3D printers due to its optimal balance between print quality and speed. This nozzle size is used in Bambu Lab’s X1 and P1 series 3D printers.
Compatibility of filaments
| Material | 0.2 mm nozzle | 0.4 mm nozzle | 0.6 mm nozzle | 0.8 mm nozzle | Is hardened steel necessary? |
| General PLA | YES | YES | YES | YES | By selection |
| PLA Sparkle | *NO | YES | YES | YES | By selection |
| PLA Marble | *NO | YES | YES | YES | By selection |
| Wood/Rock/Metal-filled PLA | *NO | YES | YES | YES | By selection |
| PETG | YES | YES | YES | YES | By selection |
| PVA | YES | YES | YES | YES | By selection |
| ABS | YES | YES | YES | YES | By selection |
| ASA | YES | YES | YES | YES | By selection |
| PC | YES | YES | YES | YES | By selection |
| PA | *NO | YES | YES | YES | By selection |
| TPU | *NO | YES | YES | YES | By selection |
| Bambu PLA-CF | *NO | *Highly recommended |
YES | YES | *Required |
| Bambu PETG-CF | *NO | *Highly recommended | YES | YES | *Required |
| Bambu PAHT-CF | *NO | YES | *Highly recommended | YES | *Required |
| Bambu PET-CF | *NO | YES | *Highly recommended | YES | *Required |
| CF/GF Filaments from other brands | *NO | Not recommended | YES | YES | *Required |
Remark:
- Filaments with carbon fibers, glass fibers, metal or other inorganic particles tend to clog the 0.2 mm nozzle.
- For filaments containing carbon or glass fibres, it is highly recommended to use a hardened steel nozzle with a diameter of 0.6 mm to minimise the risk of clogging and abrasion.
- Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a 0.4 mm hardened steel nozzle, while achieving a higher print quality.
Learn more about filament compatibility in the Bambu Lab Wiki.
Configuration of Bambu Hotend
If you need to replace your nozzle, you can replace the chotend with the nozzle of the original complete chotend kit or replace the entire complete chotend kit.

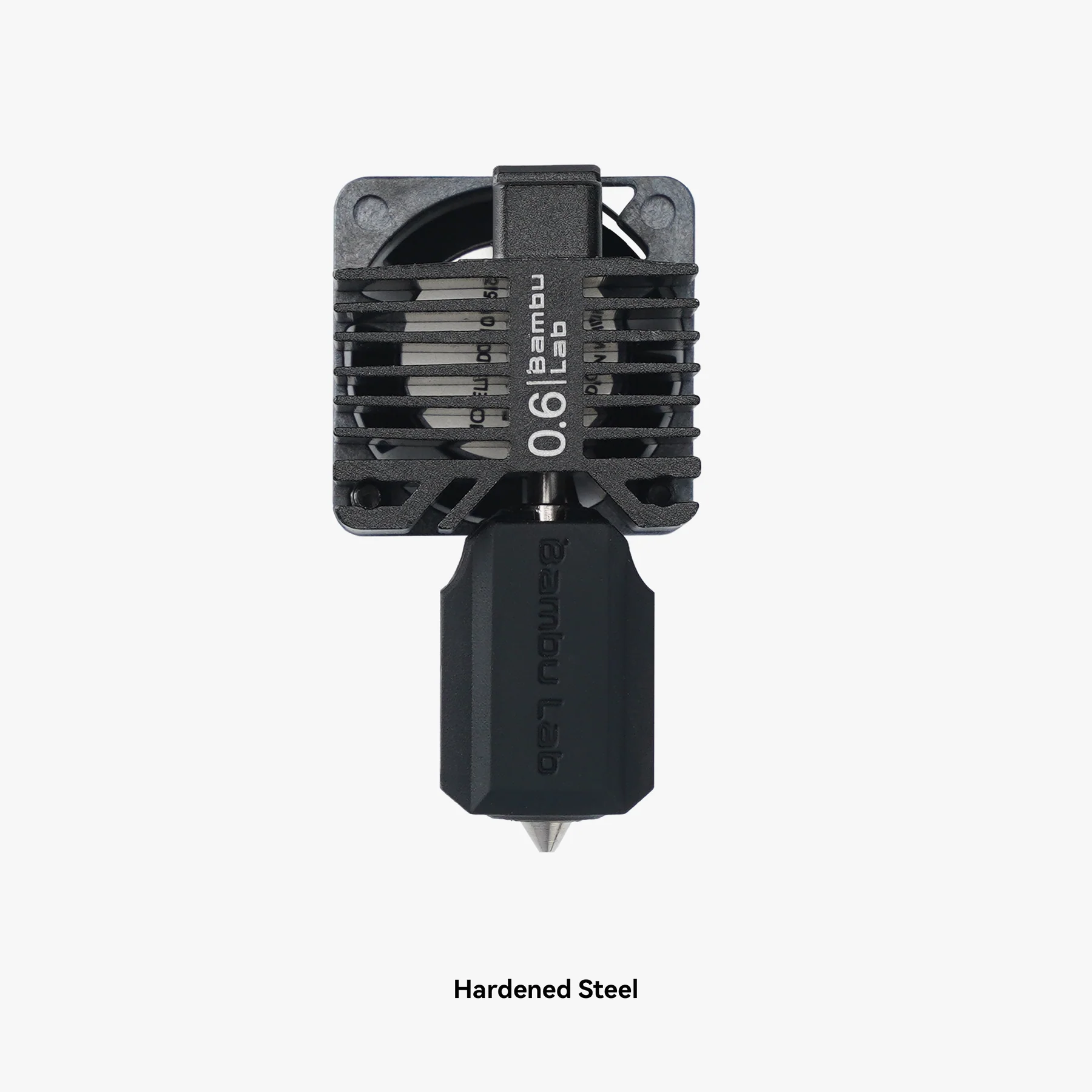

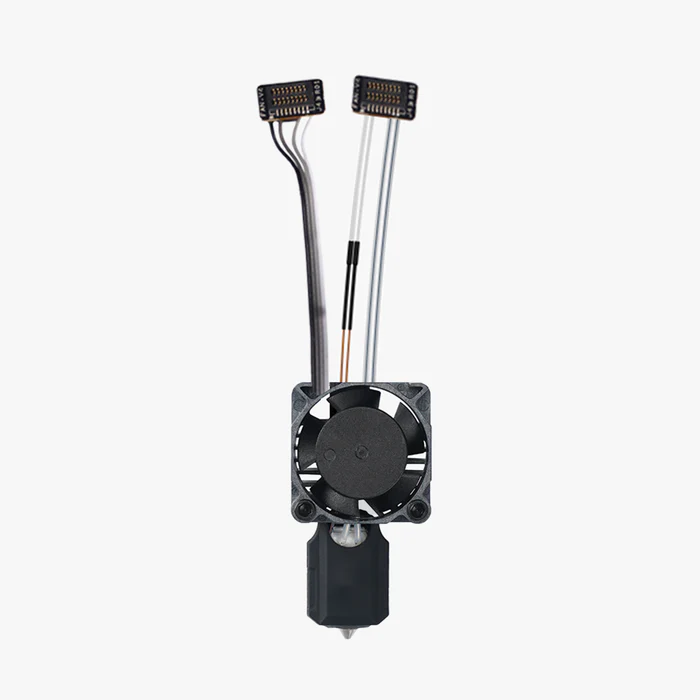

Replacement of the complete set of chotend

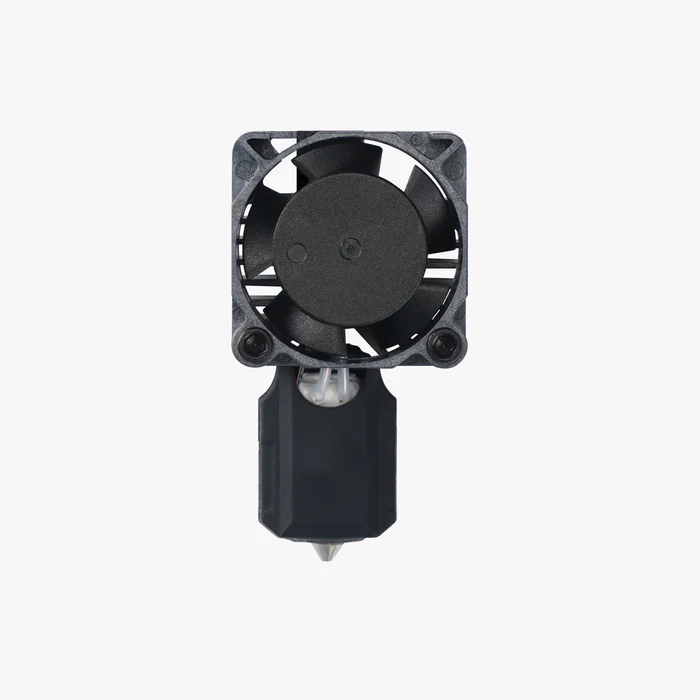

Replacing the Hotend with a nozzle
Learn more about replacing the complete chotten and chotten nozzle kit in Bambu Lab Wiki.

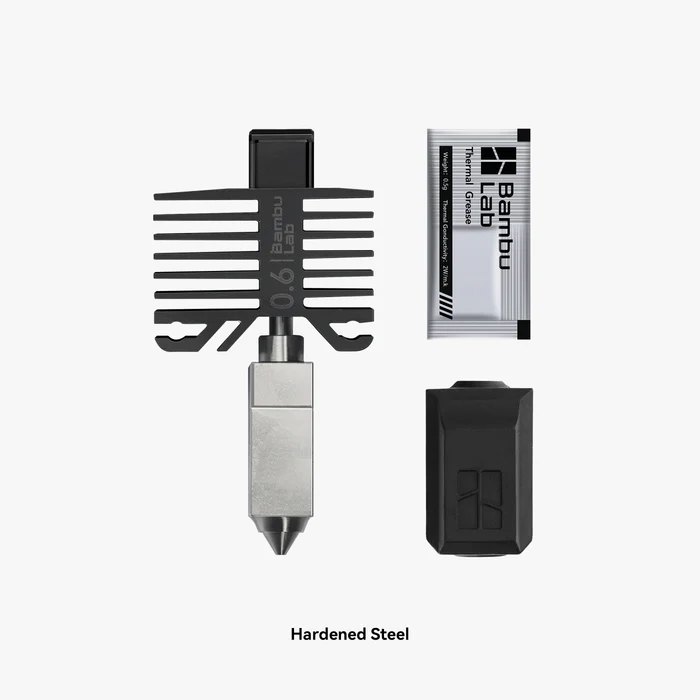

What’s in the box?
| Assembled complete set | Hotend with nozzle |
| P1 Series Full set of Hotend with nozzle * 1 | Hotend with nozzle * 1 |
| M3-14 Step screws * 2 | M3-14 Step screws * 2 |
| Silicone sock * 1 | |
| Thermal grease * 1 | |
| Holding clip * 1 |
Product Specifications
| Maximum printing temperature: |
300 ℃ | Length: | 47.3 mm |
| Package Weight: |
40 g/30 g | Pack Size: |
190*70*50 mm |
