BondTech LGX Lite Large Gears Extruder

BondTech LGX Lite Large Gears Extruder

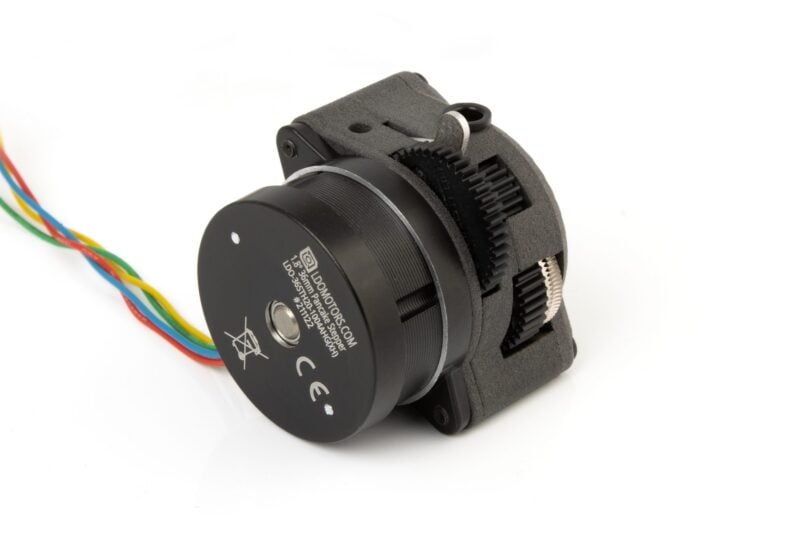

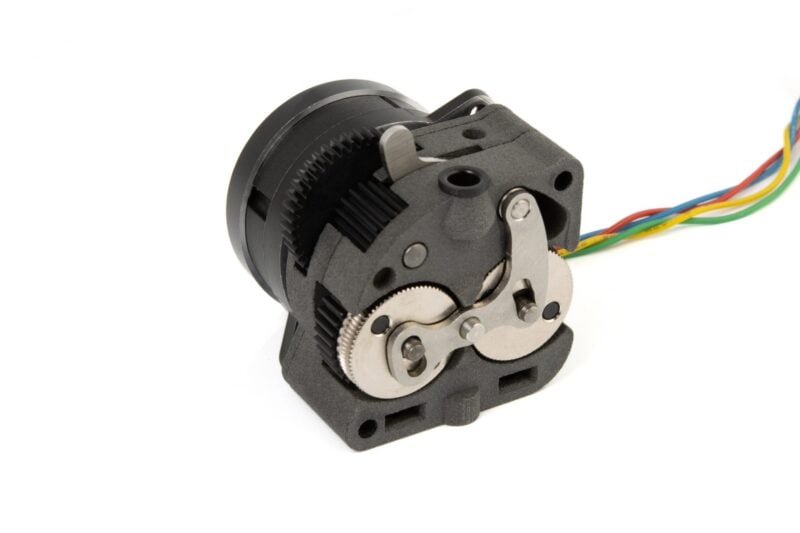

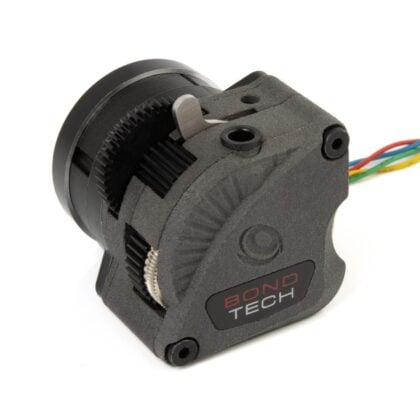

The Bondtech LGX® Lite is a filament feeding device based on the LGX® large gear extruder and uses Bondtech’s new dual drive technology based on larger drive wheels.

Each LGX® Lite extruder is supplied with:

• 1x LGX® Lite power supply;
• 1x LDO Nema14 round 20 mm pancake stepper motor;
• cable length 1 m
• with 4-pin connector JST-XH
• 1x Allen key 2 mm (recommended tool);
• 1x Powered By Bondtech sticker.

Also supplied with optional accessories:

1x clamping collar
1x 30 mm PTFE tube for use in the PTFE tube adapter.
8x M3 square nuts for securing the mounting holes.

8 features of this Bondtech eXtruder:

• Larger drive wheels for better thread grip;
• thread pre-tension lever for repeatable results;
• drive wheel maintenance windows for easy cleaning;
• Compact, lightweight and centred filament path for greater productivity and compatibility;
• Multiple mounting hole patterns for easy and flexible setup;
• Compatible with Nema14 round stepper motors;
• Craft boxes without bleaching and without coating.
• Nylon casing without painting or other chemical post-treatment.

3D printed housing using PA12

Housing parts are professionally printed with 12 gauge polyamide for maximum strength, precision and higher temperature resistance.

Surface care and notification

Not painting hull parts is an important solution to reducing the environmental impact of our products, but it comes with a trade-off.

Parts may be uneven in color, although fully functional, and are sensitive to moisture. PA12 is a nylon that can absorb moisture up to 0.66% of its volume. When absorbed, oils can have a definitive impact on the surface tone of the hull part. Be mindful of these characteristics when handling the LGX Lite.
